Triangle Tips

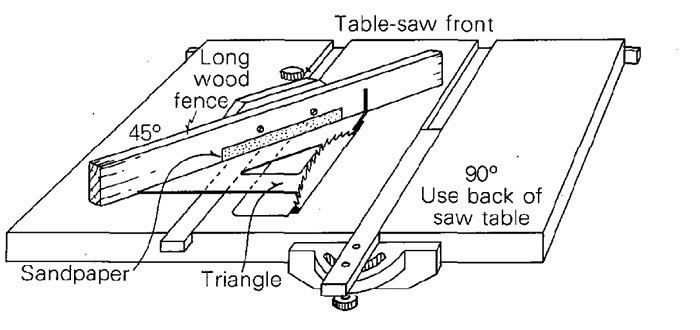

An inexpensive but accurate plastic drafting triangle gives a perfect 45¡ setting on the table saw (drawing, above). A long wood face on the fence with sandpaper attached prevents slippage and further improves accuracy. For a perfect 90¡ setting on the saw gauge, turn it over, push it against the back of the saw table, and tighten.
Jim Richey, Houston, Tex.
An architect’s 45¡ triangle is inexpensive and handy around the shop. Attach a 1/2-in. x 1/2-in. strip of walnut along the hypotenuse with No. 2 R.H. brass wood screws to make a miter square. Take care not to cut into the edge of the triangle when you scribe with a metal instrument.
Dwight G. Garrett, Centerville, Kans.
Fine Woodworking Magazine, Spring 1978 No. 10
