Q:

I recently made a table that didn’t turn out how I planned. The legs looked thin in my drawing, but now that it’s made, they look much thicker. What happened?

Andrew Jennings, San Diego, CA

A:

When building furniture from a drawing, it’s not uncommon to end up with a piece that doesn’t look exactly like you envisioned. The main problem is that a front- or side-view drawing only shows you one face of the piece at a time. After the piece is built, you almost always see it at an angle. Viewed straight on from the front, the legs might look slender, but as you move around to the side and see more than one face, the perceived width becomes much greater.

Don’t give up on drawings. Just add one more step to your building process: Make a mock-up of important components or even of the entire piece. Mock-ups give you a sense of how things will look and the chance to alter dimensions before committing your vision to expensive wood. For single components, full-size models are a good idea, but for entire pieces, a scale model is fine and quicker to make.

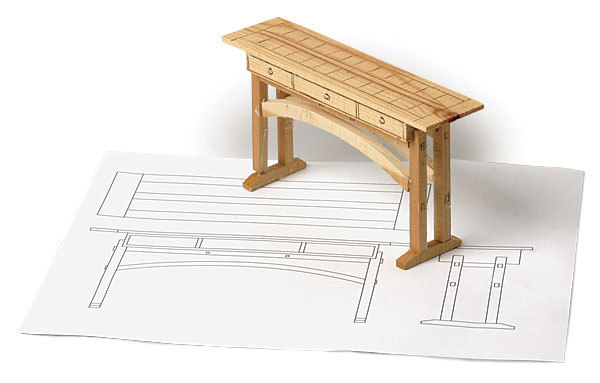

Draw first, model second. A scale model lets you see a piece the way it will really look. Note how the legs look thicker when viewed at an angle.

Full-scale success. Pekovich built this entry table only after developing his design through drawings and scale models.

Photos: Staff
