It’s difficult to control long boards when face planing. Benchdogs don’t always work, and a simple end stop doesn’t control long boards well, especially when you skew the plane. This jig uses a pipe clamp to hold boards and panels of all sizes, grabbing them securely, holding them flat, and releasing them quickly.

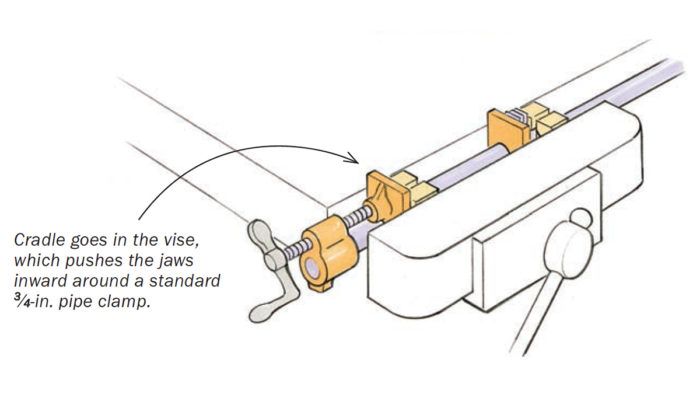

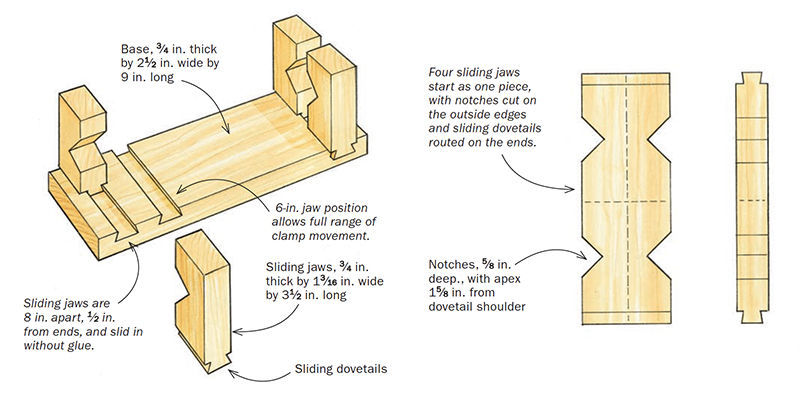

I use it in my end vise, holding a pipe clamp perpendicular to the length of the bench, just high enough that the clamp jaws can grip the edges of the board while staying out of the way of my finely sharpened plane blades. The jig’s jaws are attached with sliding dovetails, unglued, so the vise can push them inward to grab the pipe securely. The jaws protrude beyond the width of the base plate so they can be squeezed by the vise.
I remove the plastic clamp pads to allow the jaws to grip more securely in a low position, but if you are concerned about the metal jaws marring workpieces, use epoxy to attach leather pads. The jig shown will work for vises whose jaws have at least 41/4 in. of space above their guide rods or vise screw. If your vise is smaller, adjust the dimensions accordingly.
—Larry Poore, Issaquah, Wash.
Illustrations by Dan Thornton
From Fine Woodworking issue #275
Fine Woodworking Recommended Products
Festool Rotex FEQ-Plus Random Orbital Sander
3M Pro Grade Sandpaper
Hedgehog featherboards
Comments
just what the doctor ordered thanks for the tip it has been working well in my small garage shop
Also works great for holding long pieces for shaping with spokeshave or even chisel (e.g. when shaping a leg).
Clamp the ends of the long wooden piece in the pipe clamp (or whatever your long clamp is), and then affix the pipe clamp in the vise.
