How to Cut Accurate Tenons on the Table Saw

A dado set on the tablesaw is Charles Durfee's go-to method for cutting tenons.

By Charles Durfee #283-Jul/Aug 2020 Issue

Synopsis: A dado set on the tablesaw is Charles Durfee’s go-to method for cutting tenons. It’s fast, because it takes only one or two passes on the saw. He cuts the shoulders and cheeks at the same time, and it’s easy to get a perfectly fit, centered tenon. He uses a miter gauge with a hardwood fence to support the workpiece and employs the tablesaw’s rip fence as a stop. He fine-tunes the fit at the bench.

I’ve tried many techniques for cutting tenons over the years, but the method I’ve settled on uses a dado set at the tablesaw. With the stock flat on the table, I can cut a tenon in one or two passes. It’s fast because I cut the shoulders (the base of the tenon) at the same time as the cheeks. I can dial in the fit and I get a tenon that’s perfectly centered and parallel with the faces of the workpiece. Tenons that are offset or haunched can also be cut this way but will require a few more setups.

Before you begin

It’s important to start with flat, square stock because all of the faces will be used for reference on the tablesaw top when cutting the tenons. If the stock is not flat, you’ll end up with a wonky tenon. It’s also critical that the end of the stock be square. This will result in shoulders that are square so that the joint comes together without any gaps.

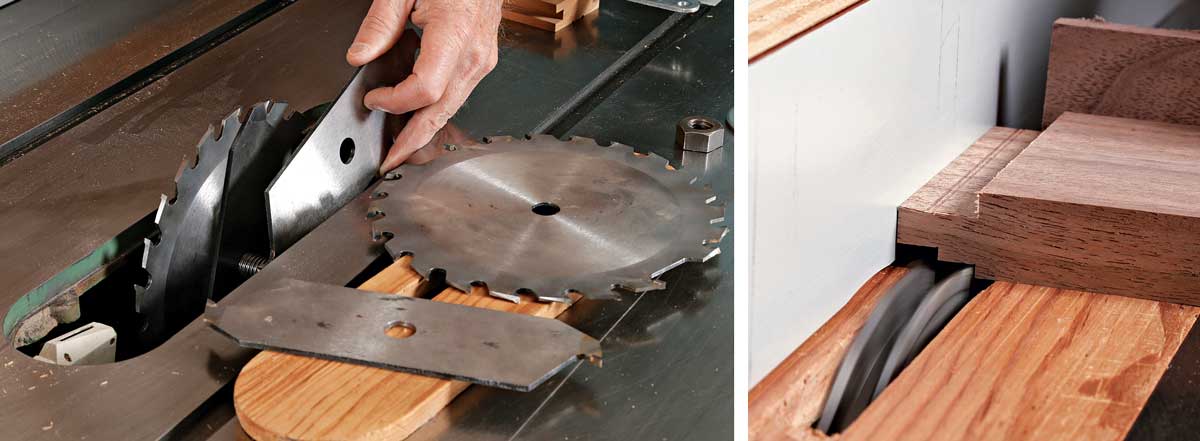

Dado set is the secret. Assemble the outer blades and inside chipper blades to make a wide cut. With this setup, you can cut a tenon in one or two passes. — **Dado set is the secret.** Assemble the outer blades and inside chipper blades to make a wide cut. With this setup, you can cut a tenon in one or two passes.

I cut all of the mortises before the tenons, because I find it easier to fit a tenon to a mortise than the other way around. The mortising method isn’t important, but if you use a router, you’ll need to deal with the rounded mortise ends— either squaring the mortise with a chisel or rounding the tenon when it’s done.

More of hand tool user?
See how Chris Gochnour cuts
mortise and tenon joints quickly
accurately by hand!

Install the dado set

I use a standard 8-in. dado set. It consists of two outer blades and a number of chipper blades between them. The blades all have teeth that make a flat-bottomed cut, a must for tenons. Most tenons are longer than the width of my dado set, so I choose a width that allows for a nice overlap from cut to cut, say 5⁄8 in. for a 1-in. tenon. For short tenons, anything under 3⁄4 in., I set the dado blade for a wider cut and bury a portion of the blade in a sacrificial fence clamped to my rip fence. This allows me to cut a full-length tenon in a single pass. Once the dado set is installed, square up the miter gauge and adjust the tablesaw’s rip fence to set the length of the tenon.

Set up the saw’s miter gauge and fence

Screw a hardwood fence to the miter gauge. The piece should be milled flat and square. The fence will help prevent chipout and will offer plenty of support as you make the cut. — **Screw a hardwood fence to the miter gauge.** The piece should be milled flat and square. The fence will help prevent chipout and will offer plenty of support as you make the cut.

Square up the miter gauge. Durfee uses a piece of MDF with a square corner for the job. Hold the MDF against the tablesaw fence and the miter gauge, and adjust the miter gauge until it is flush with the back edge of the MDF. Make a test cut to check the setup. — **Square up the miter gauge.** Durfee uses a piece of MDF with a square corner for the job. Hold the MDF against the tablesaw fence and the miter gauge, and adjust the miter gauge until it is flush with the back edge of the MDF. Make a test cut to check the setup.

Set the tenon length. When cutting tenons, Durfee uses the tablesaw’s rip fence as a stop. Use a combination square as shown, and measure from the outside of the dado set. Slide the fence until it touches the end of the rule. — **Set the tenon length.** When cutting tenons, Durfee uses the tablesaw’s rip fence as a stop. Use a combination square as shown, and measure from the outside of the dado set. Slide the fence until it touches the end of the rule.

dado blade diagram

From Fine Woodworking #283

To view the entire article, please click the View PDF button below.
