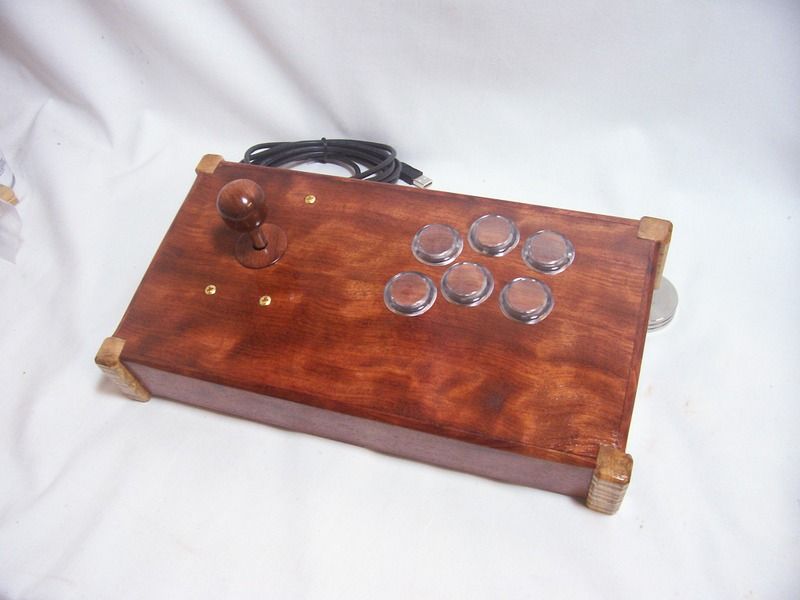

Top view
This is a custom built joystick controller for the Playstation 3 console gaming system. The woods used are 1/4″ waterfall bubinga and 3/4″ spalted curly maple with a MDF frame. Construction used a combination of power and hand tools. The electonics are authentic Sanwa and Seimitsu arcade controls from Japan. The custom interface connects to the Playstation 3 system or a personal computer. More information on the design and construction can be found on my blog. http://kaytrimskustoms.wordpress.com/2009/01/21/introducing-the-artistic-series/
-
Top view
-

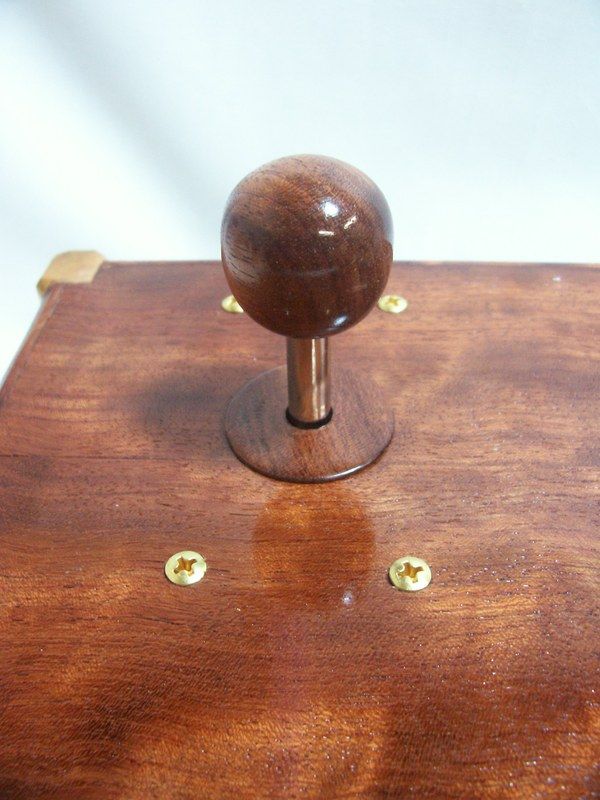

Hand turned joystick ball and dust cover
-

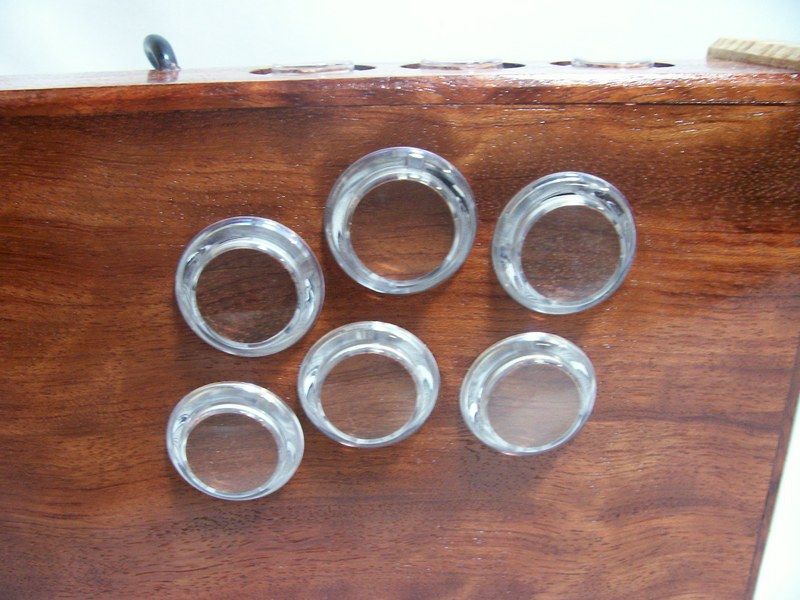

Main buttons with bubinga veneer inserts. The side buttons also have veneer inserts.
-

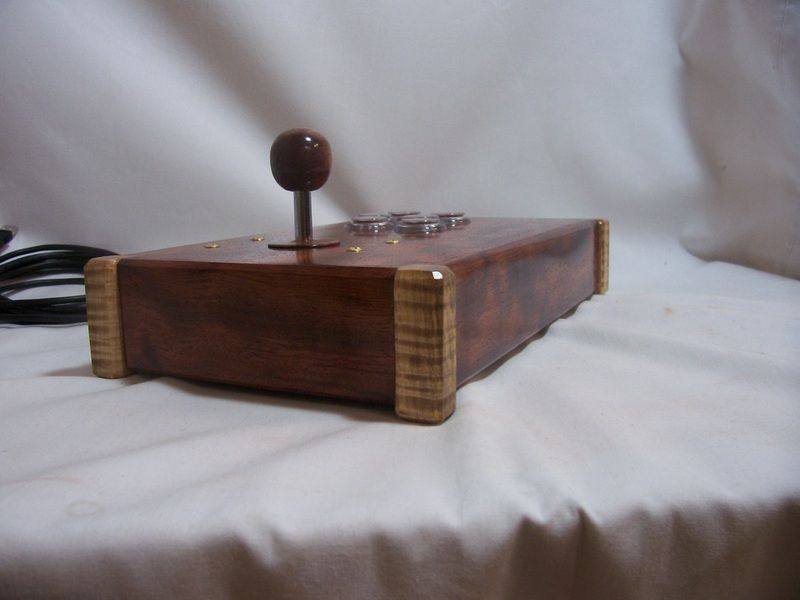

Side view showing the maple corner blocks
-

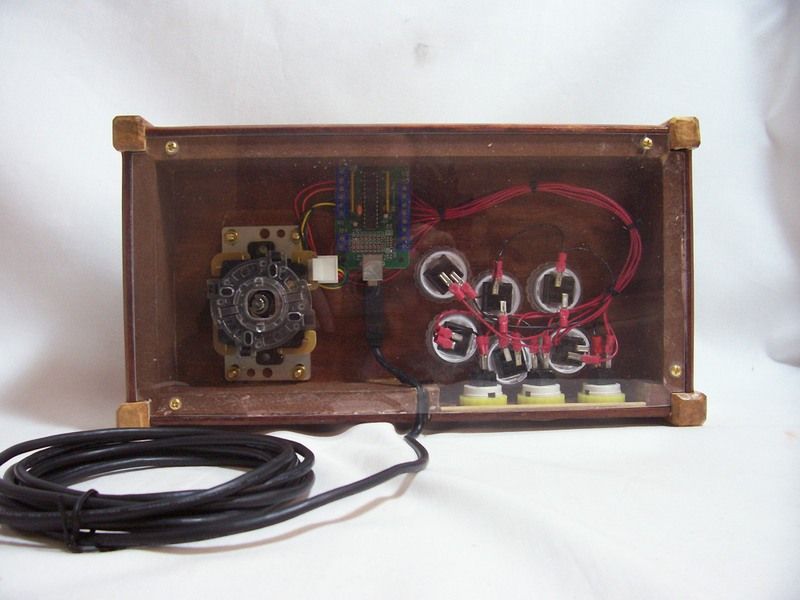

Vew of the bottom with plexiglas panel showing the electronics inside.
Comments
Nice to see there are other gamers here. I love the steampunk feel to it as well. Great project and keep up the good work.
Thanks for the comment. I didn't have a chance though with all the other enteries. Most are far beyond my abilities to even concider atempting.
