Router Table with integral DC
Apr 16, 2009
Based on home vacuum motor attached to the lower shelf and activated with the router, the vacuum created in the cabinet draws most of the dust created on the top. Larger chips and finer dust are all kept inside the cabinet.

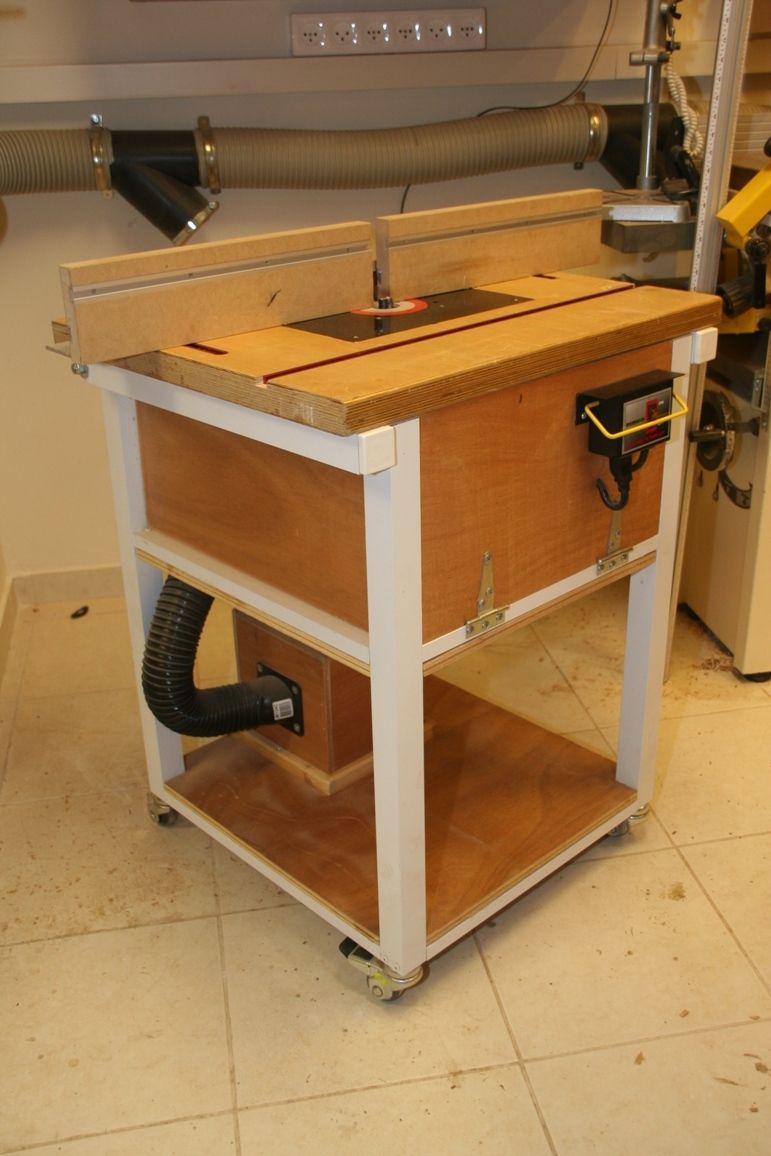

The unique feature of my router table is its self contained dust collection system.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-
Based on home vacuum motor attached to the lower shelf and activated with the router, the vacuum created in the cabinet draws most of the dust created on the top. Larger chips and finer dust are all kept inside the cabinet.
-

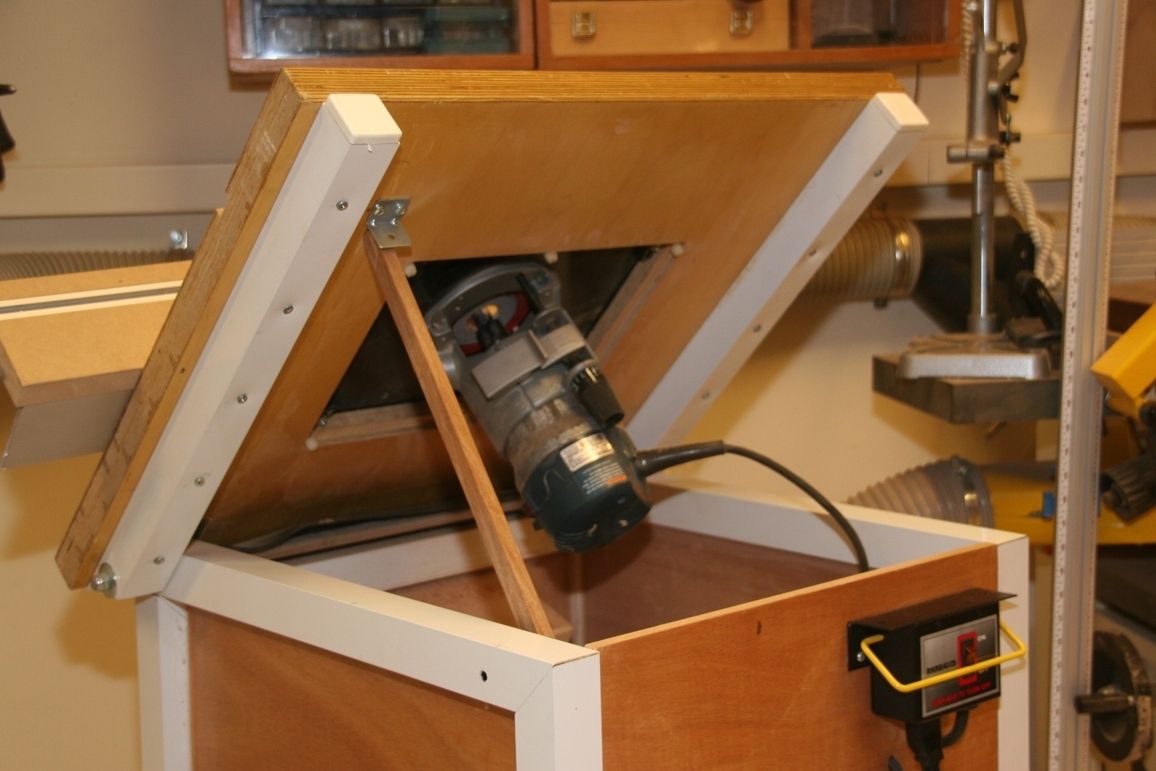

Tabletop lifts to allow router access and dust removal.
-

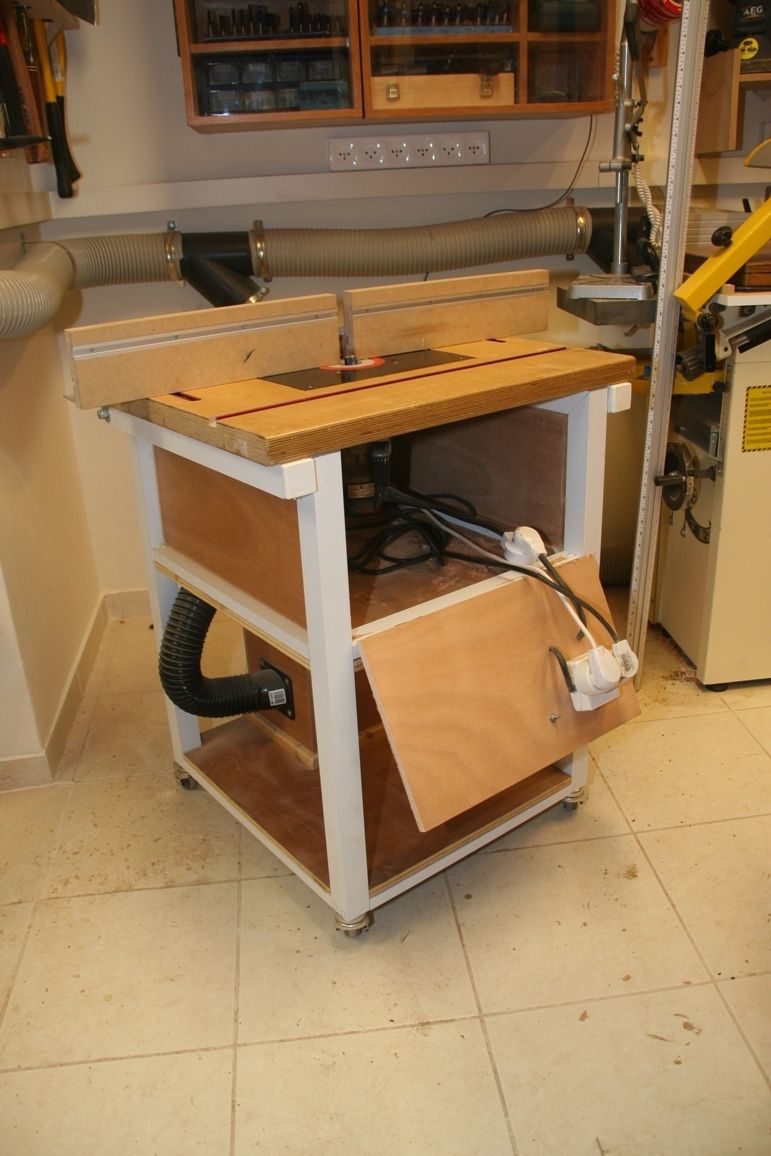

Front panel opens as well.
-

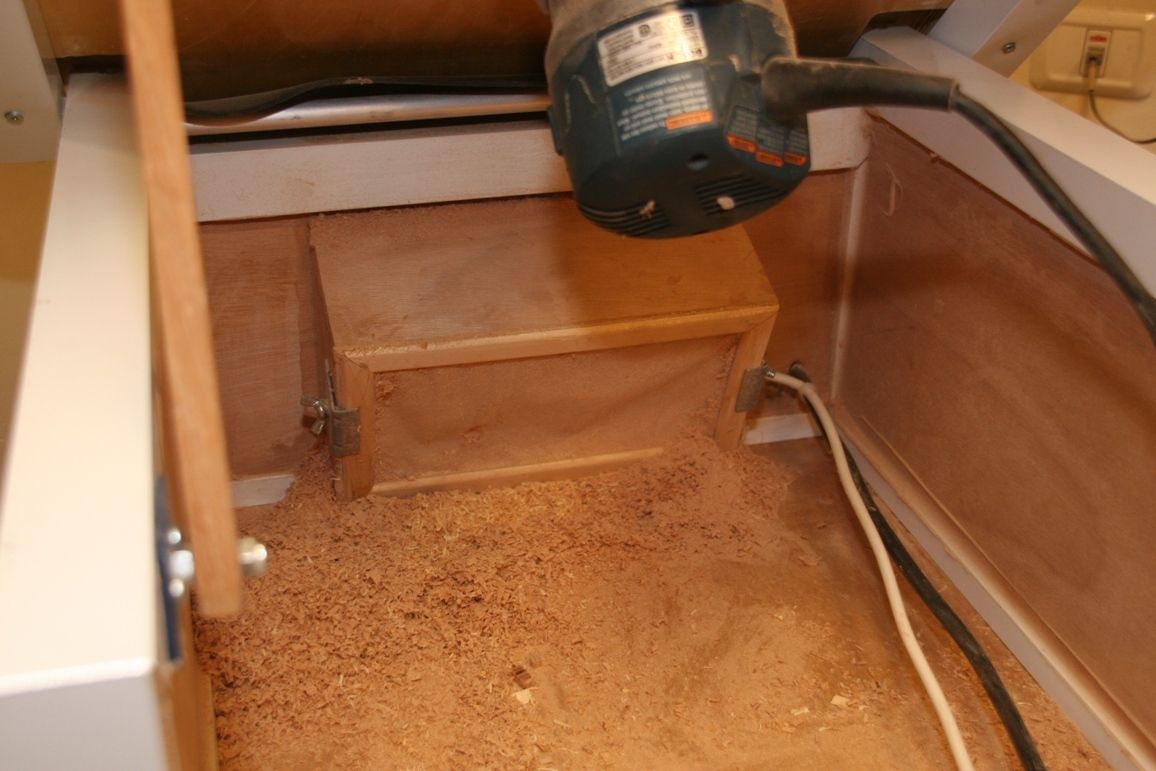

The filter prevents dust from returning to the workshop.
-

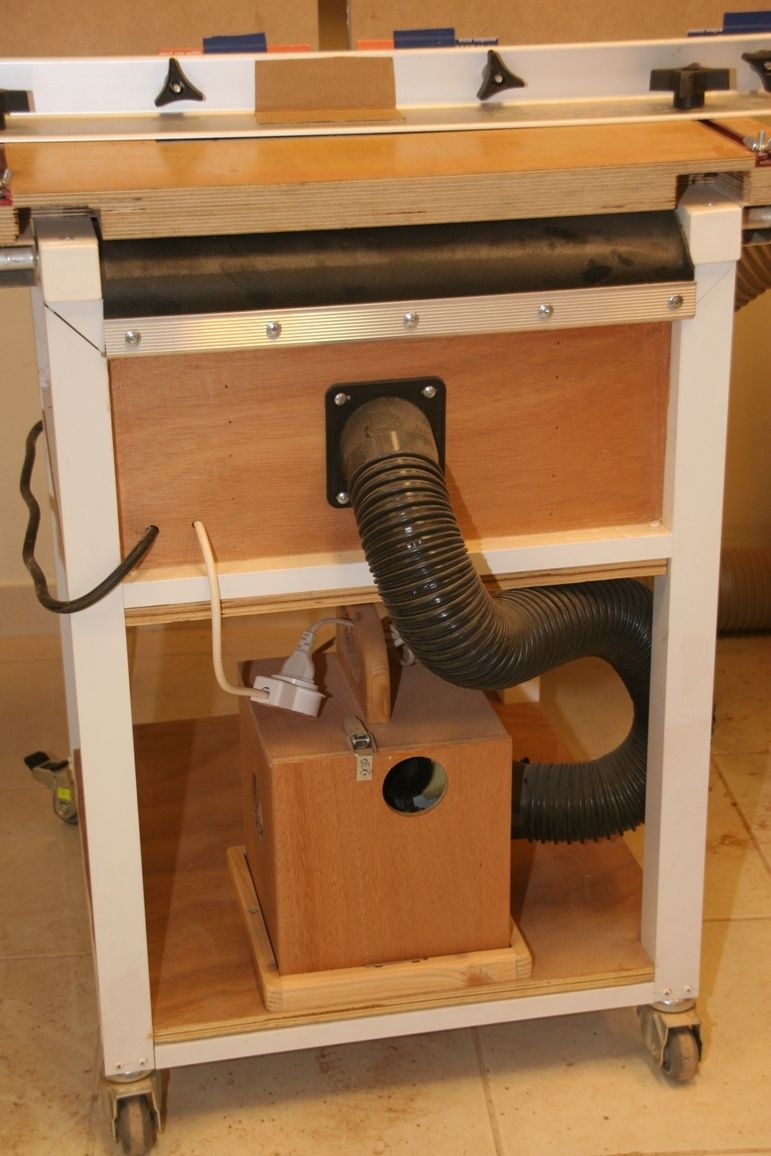

Rear view of the table reveals the vacuum motor on the bottom shelf.
Comments
I had thought I ought to look for a manufactured table but I am am really impressed with what you have done....do you have plans available?
Sorry, I didn't work with plans but I can take down some measurements for you if it helps.
