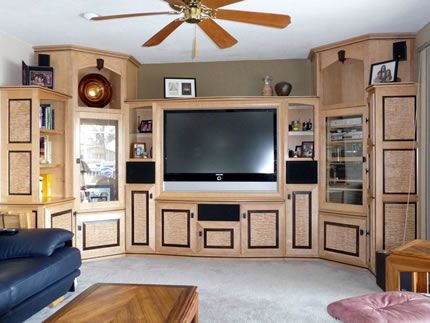

Main unit 13' with 4' on each adjacent wall. Left tower houses curio cabinet. To its left is open bookshelf. Right tower houses pocket glass door where audio-video components are stored. To its right is vertical drawer units.
13′ long main wall with 4′ wings on adjacent walls. tiger maple frame work with veneered tiger maple for all exposed flat panels. Accents done in solid zircote, with raised panels veneered in quilted maple. Tv pulls out on rails and turntable for access to rear connections. Audio/Video is accessible through a pullout turntable system while door slides back into pocket. Vertical drawers to side of that stores CD’s, DVD’s, and Tapes. Left is the curio cabinet and left of that is shelving area. Upper shelving has dimmable accent strip lights, along with strip lights in each of the interior spaces.
-
Main unit 13' with 4' on each adjacent wall. Left tower houses curio cabinet. To its left is open bookshelf. Right tower houses pocket glass door where audio-video components are stored. To its right is vertical drawer units.
-

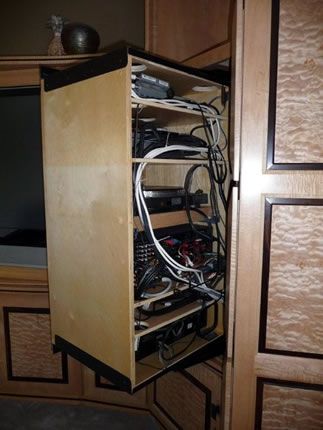

Audio-video rack storage on turntable for ease of access to the rear of the electronic components.
-

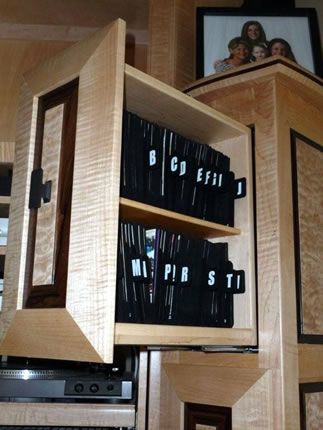

Veritcal drawers mounted on soft closing concealed drawer glides. Storage for CDs, DVDs, and etc.
-

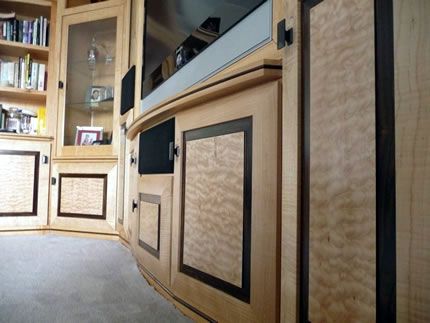

Front of main unit has a convex line.
-

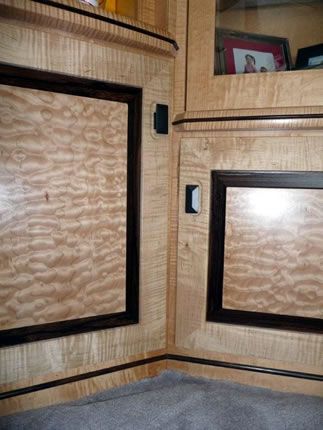

Door frames are angular faced mitred jointed corners; raised panels are edged in solid zircote and veneered in quilted maple. Door hardware is mounted on a routed flat to hold handles perpendicular to the door face.
Comments
Really nice. it looks like this was a huge project.
This is a GORGEOUS piece of craftsmanship!! I love how the component shelves are on a turntable for easy access to the back of them. Beautiful design, well planned & thought out. Nice idea for the media storage, also. GREAT JOB!!
Dan
Thanks Dan, the TV also pulls out on a turntable to get to the back of the unit. It did take a while to build. Made the final push last Christmas because we were getting company and wanted it complete.
