Torsion Box Assembly Table

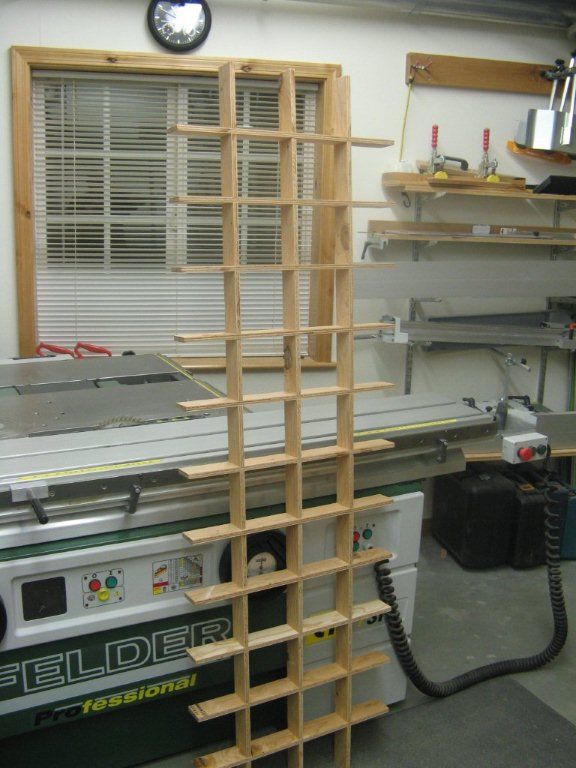

Torsion box grid 1/2" plywood strips
I needed more room for assembly, but the table needed to be portable and light enough for one person to move. I decided on torsion box construction as it provided all the benefits of heavier construction without the weight. Dowel holes in the sides of the table keep the two sections aligned (you cannot see the dowels inserted between the two tables), but easily disassembled for strorage. Torsion box construction insures that they are dead flat, light weight and stable. When not in use they easily store against the wall
-
Torsion box grid 1/2" plywood strips
-

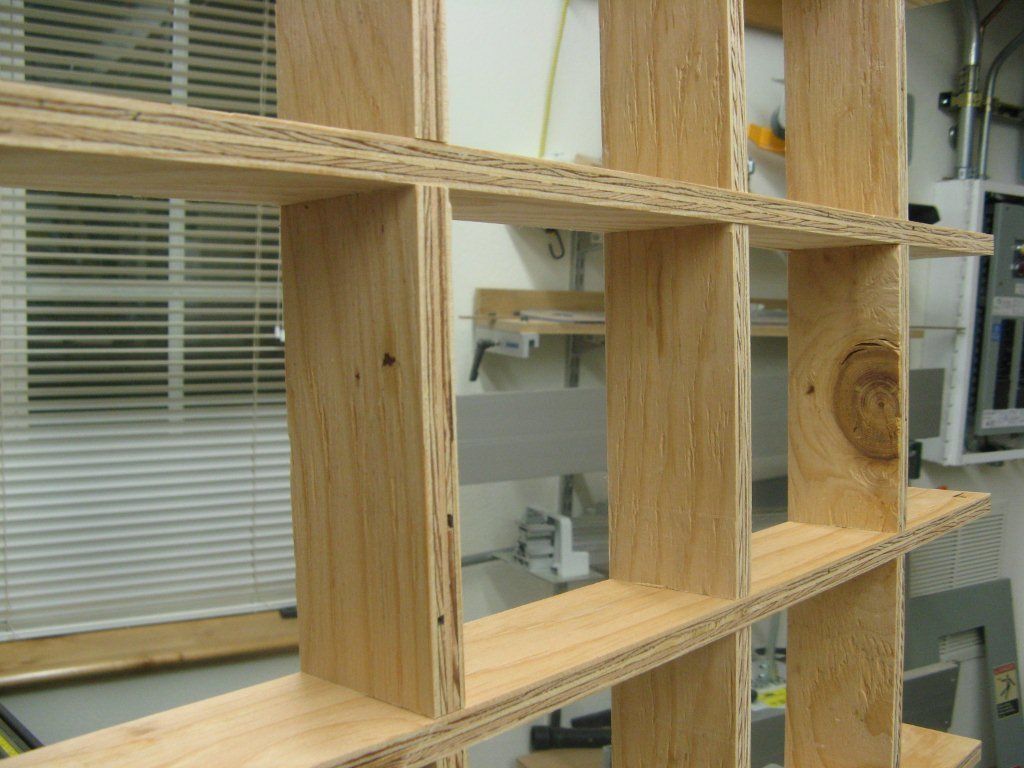

Torsion grid joinery
-

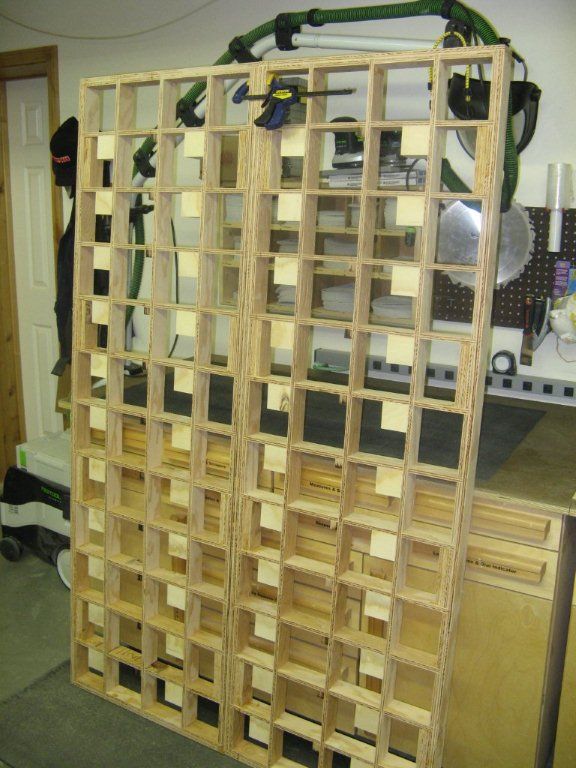

Finished gridwork with support blocks for dog holes
-

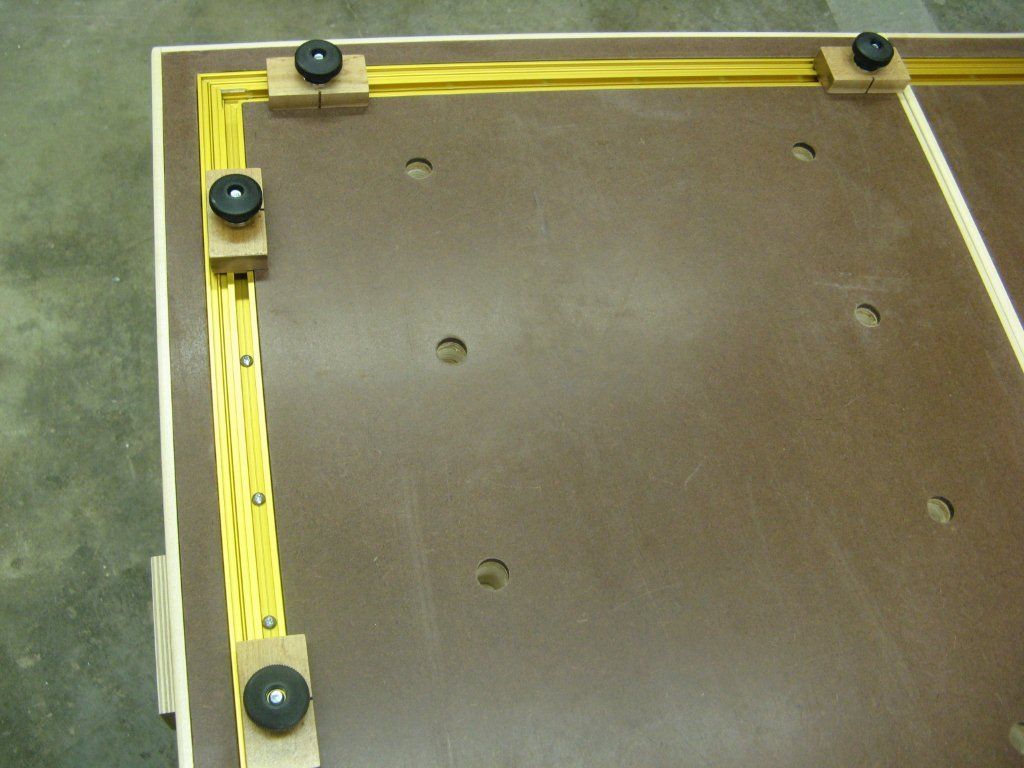

Finished table with Incra T-Track inserted
-

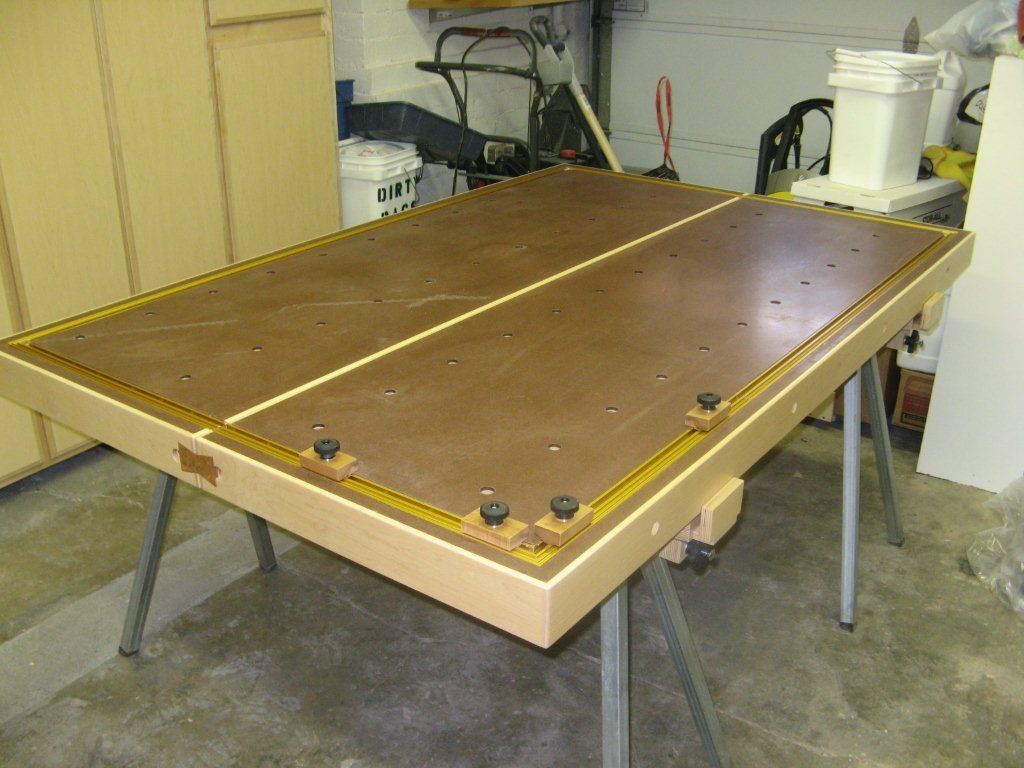

Finished table supported on saw horses. The "bow ties" on each end of the table keep the tables from separating. The tables are reversable with the opposite side being flat without dog holes.
Comments
Great project! I love the T-Track system on all four sides with stop blocks and dog holes.
I also want to make an assembly table but like you have limited space. I wasn't sure what to do with the thing when not in use. Dowling the two tables is something I haven't thought of. I'm new to woodworking and need a plan for most of my projects. Do you have one? Are you willing to share it?
Would appreciate any help. Thank you.
