The mahoagny table closed ... 50 wide by 72 long
This post highlights three posts from my dorset customfurniture blog … There are links in the photo captions which will take you to more and larger photos with more elaborate process descriptions …
The mahoagny table closed ... 50 wide by 72 long
This post highlights three posts from my dorset customfurniture blog … There are links in the photo captions which will take you to more and larger photos with more elaborate process descriptions …

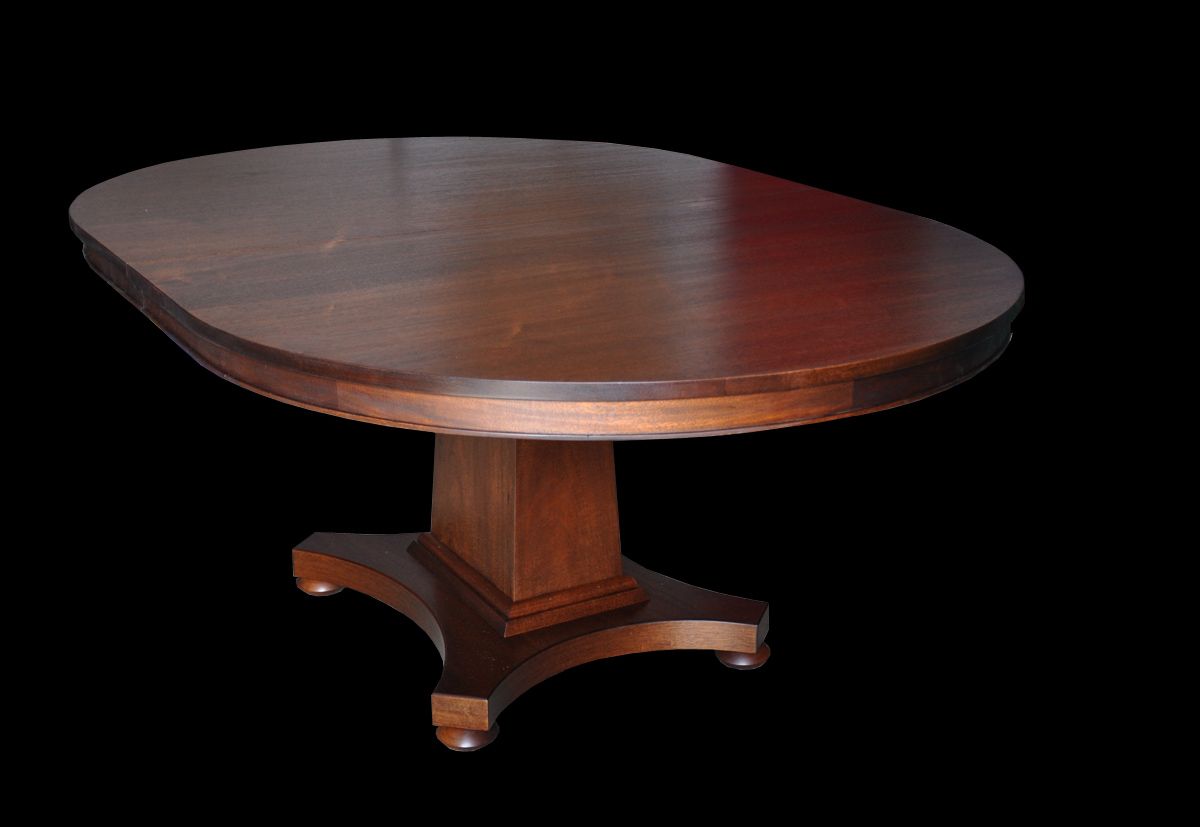

The mahoagny table closed ... 50 wide by 72 long

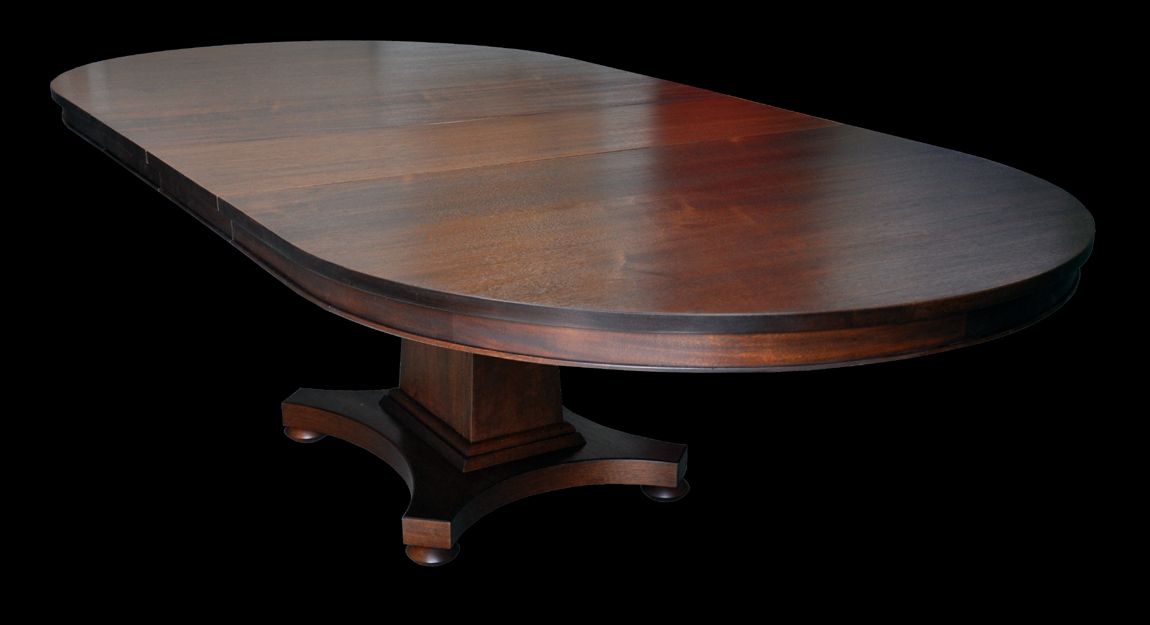

The table with the three 15.5" leaves in... The pedestal is stationary

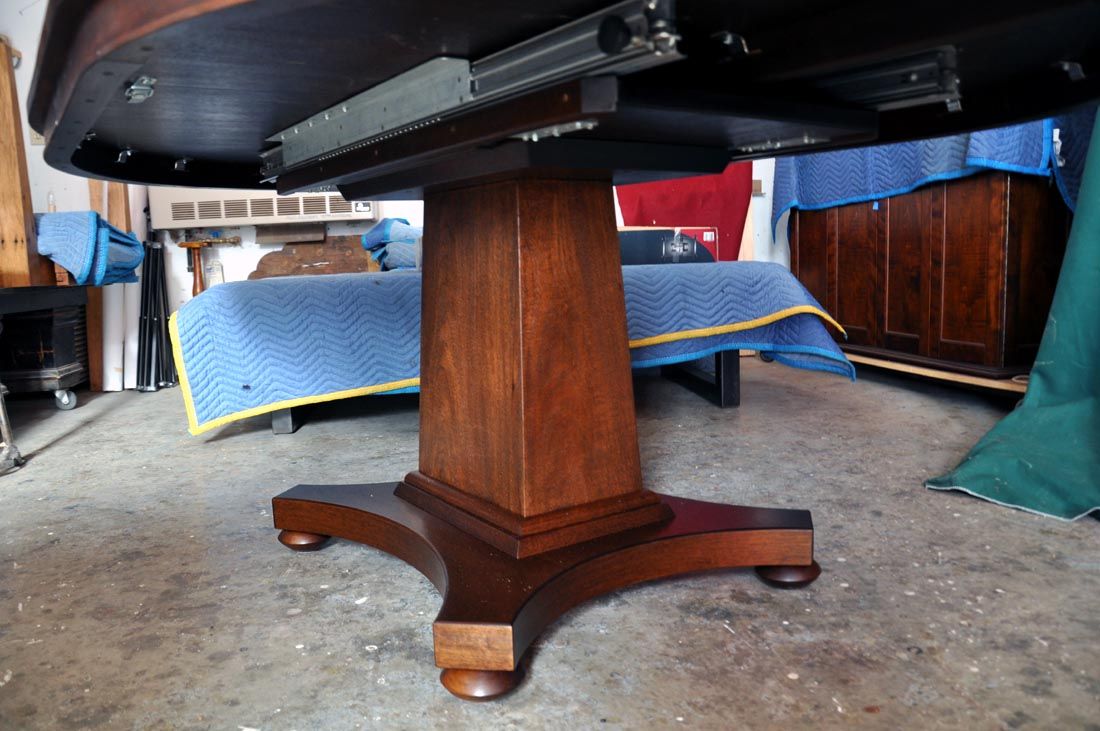

This photo shows the runner assembly from underneath . The slides are equalizing Hafeles which I believe are no longer available. Moin Hardware has a comparable slide This post includes a nice note from the clients, the finishing schedule and a few more photos not shown here

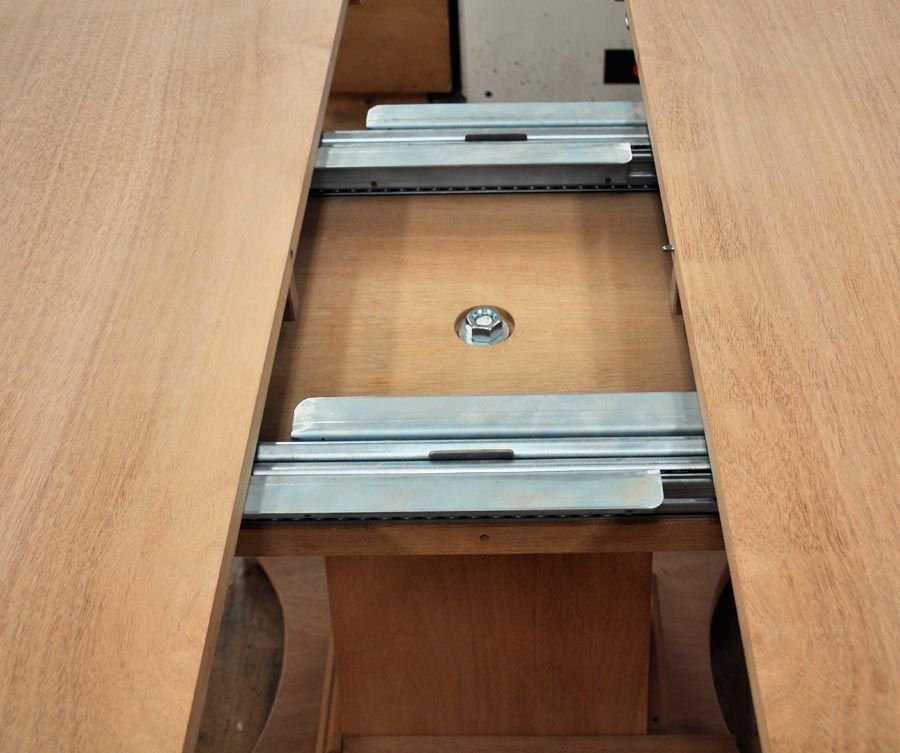

This photo shows the3/4" bolt securing the runners and top to the base

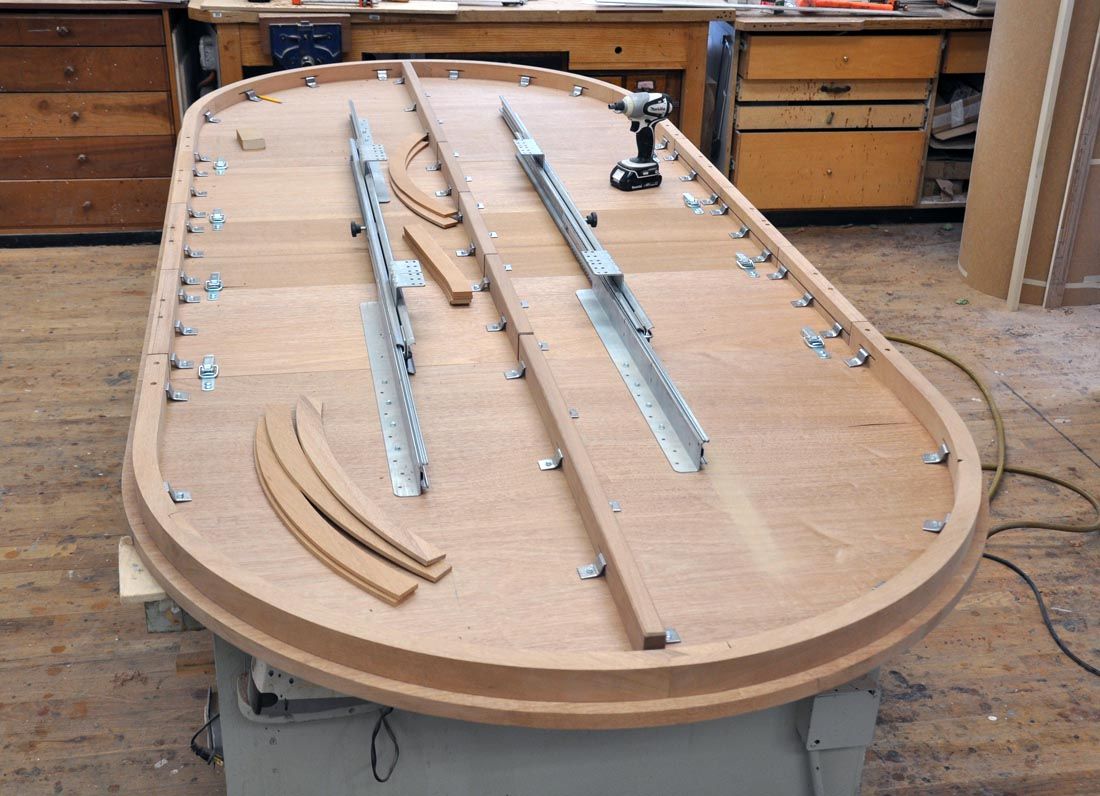

This shows the hardware and aprons without the other structure in the way ...

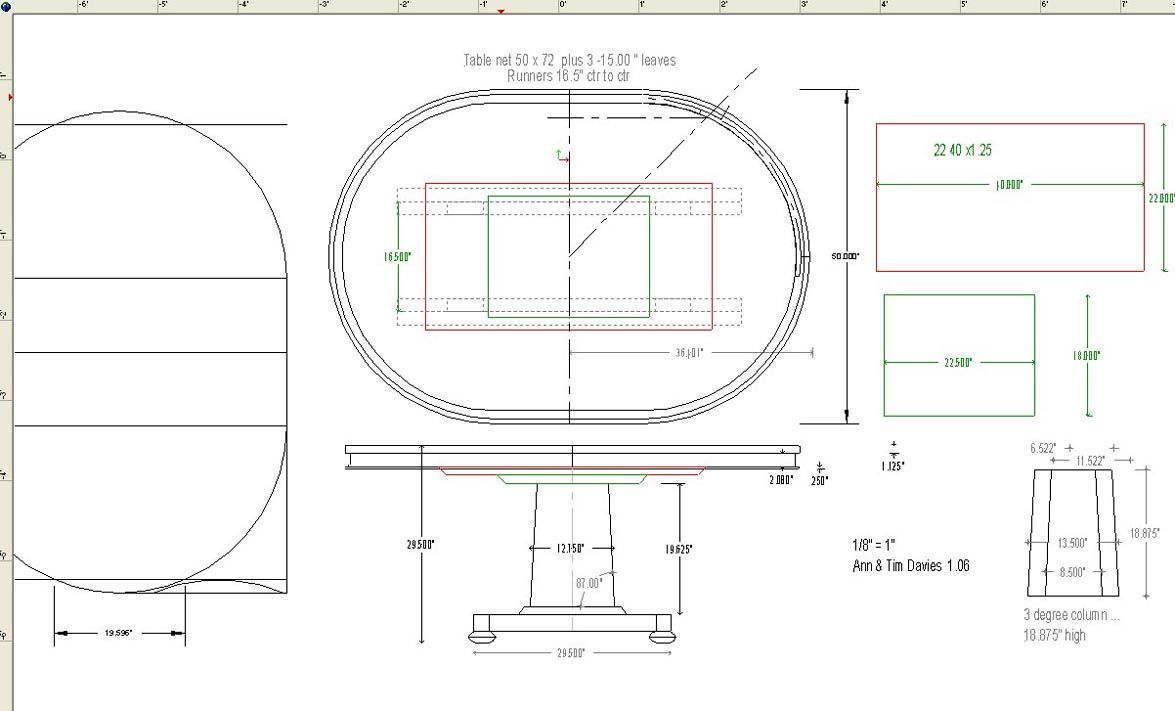

The CAD drawing showing the column top and the subtop that the runners are attahced to ... the table then seperates for moving into the pedestal part and the top with the runners attached. The bolt and a few screws hold the whole thing together ...

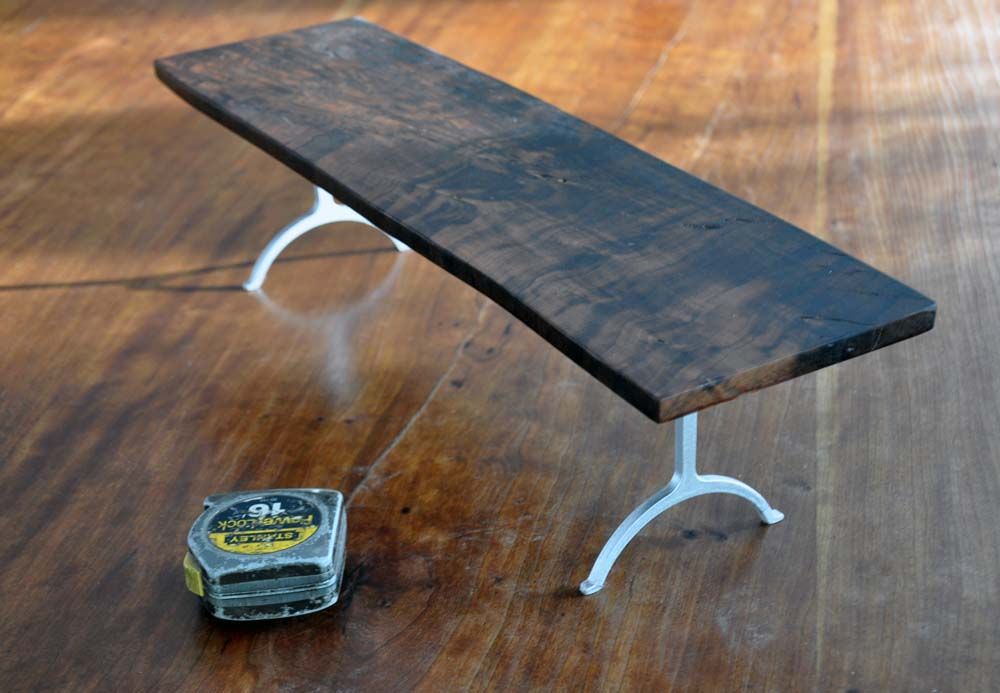

A 1/6th scale model of a 10' claro walnut table we're currently working on

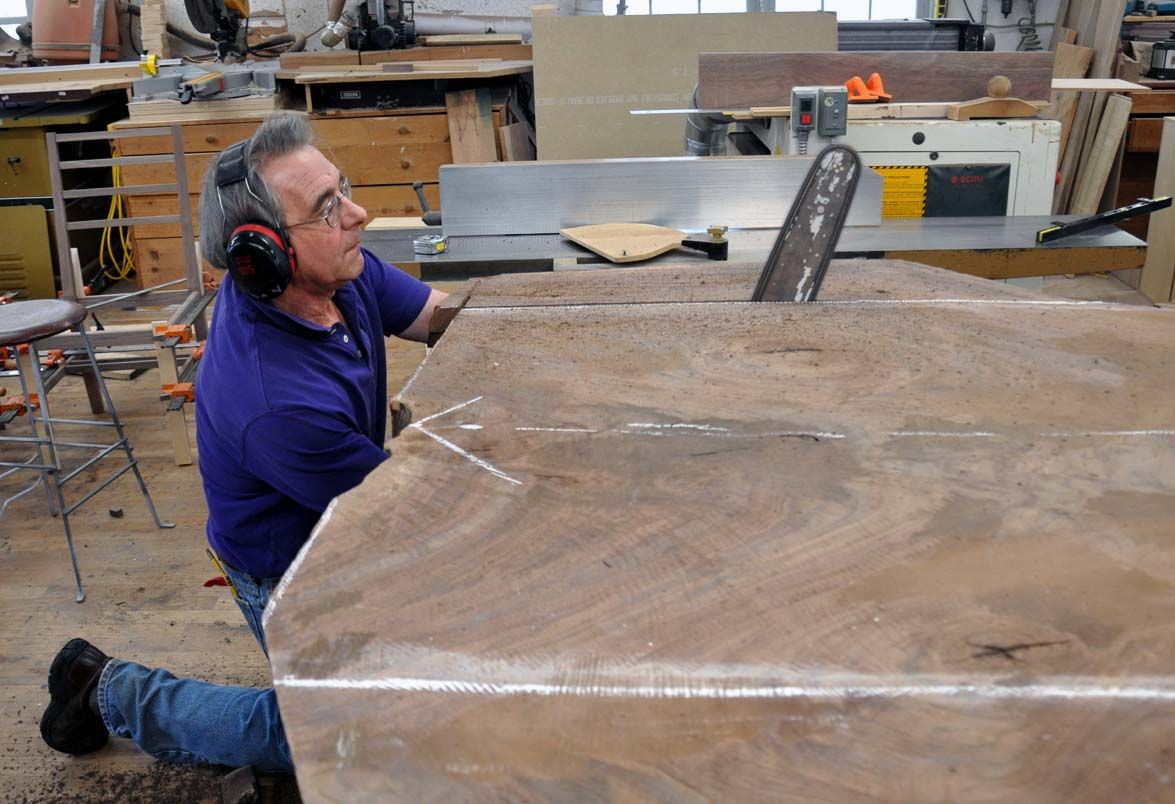

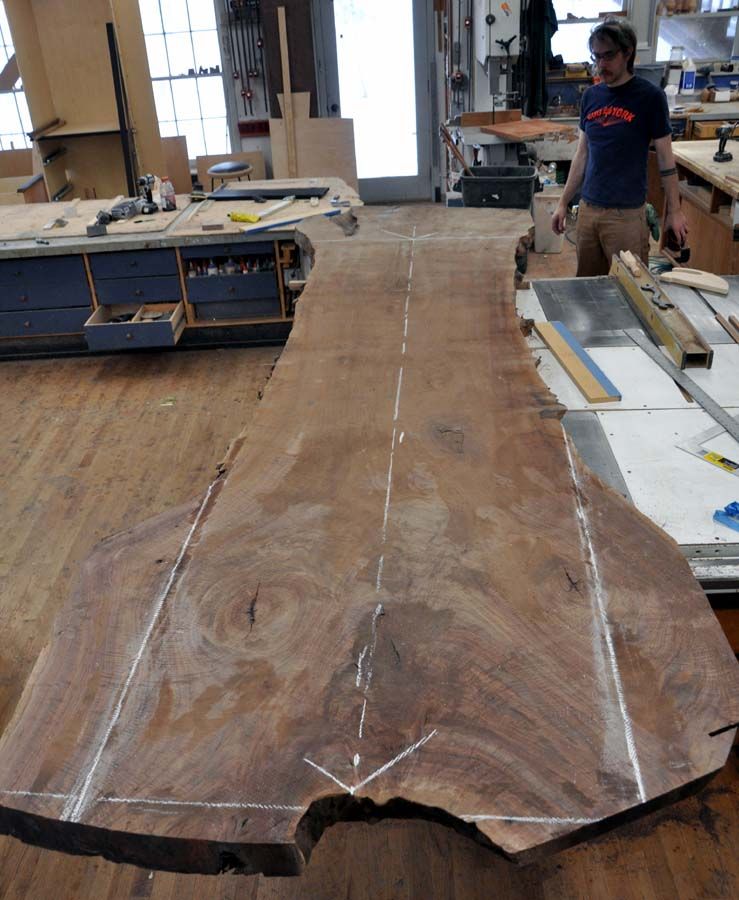

This was a first ... chainsawing indoors, but it was freezing cold and snowing like crazy outside ... We all had our ear protection on ... Don't try this at home ...

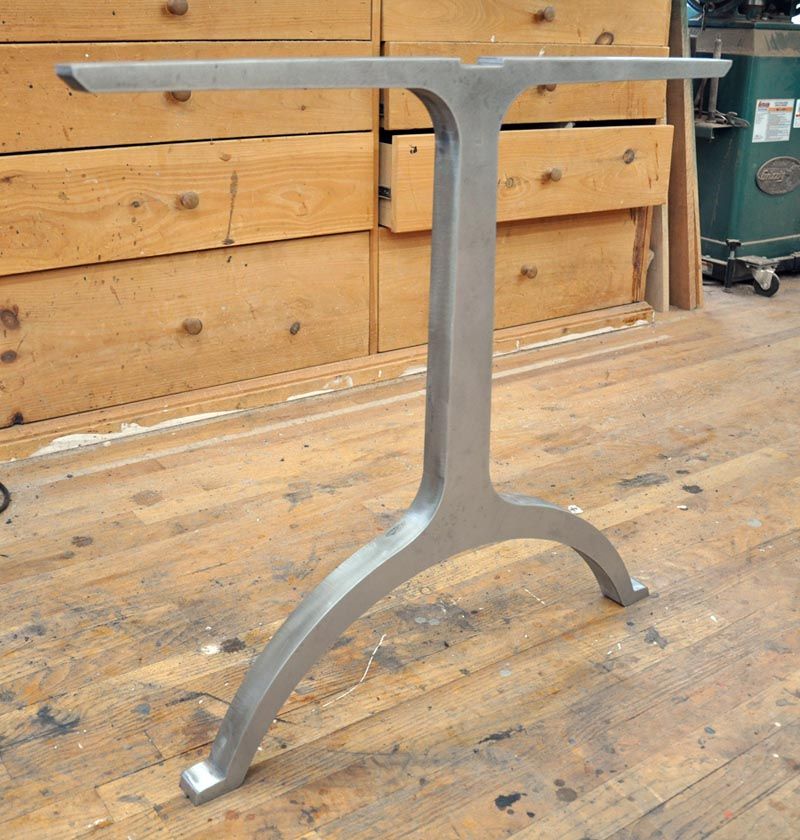

This is one of the two 1.5" thick metal bases we had waterjetted at a local steel fabiricator ... Sam will assemble the pieces and we'll bolt it to the base, like the model ...

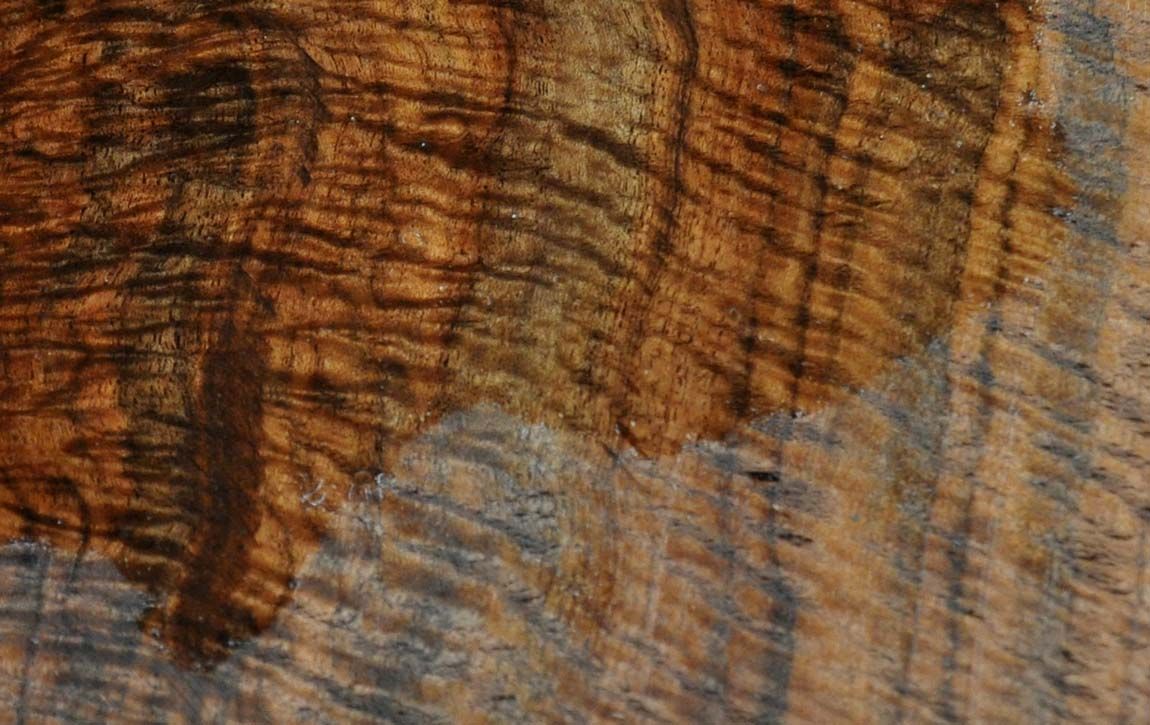

Gonna look great ... Here it is with a little alcohol on a little of the ffigured part

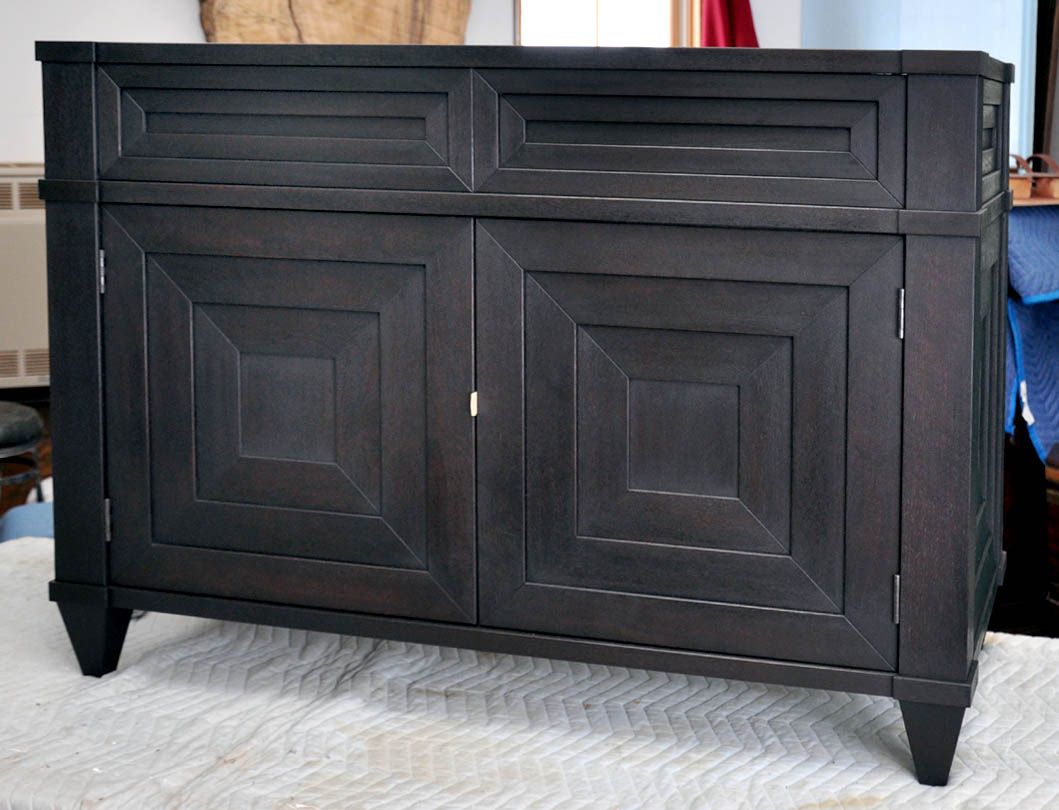

I'll just throw this one in here at the end ... It's an Art Deco style 'black' walnut cabinet that Will just finished ... The post is called 'Paint it Black'
Get It All!
UNLIMITED Membership is like taking a master class in woodworking for less than $10 a month.
Start Your Free TrialWith its graceful curves, cabriole legs, and ornamental back splat, a Queen Anne side chair is a bucket list build for many woodworkers. Dan Faia had a very specific Queen…
Become an UNLIMITED member and get it all: searchable online archive of every issue, how-to videos, Complete Illustrated Guide to Woodworking digital series, print magazine, e-newsletter, and more.
Get complete site access to video workshops, digital plans library, online archive, and more, plus the print magazine.
Already a member? Log in
Comments
You do have two hands on that chainsaw in the cutting picture, right? It just looks like you might lose an arm if it kicked back.
not to worry BStev ... but i do ABSOLUTELY not recommend trying this unless you feel 110% safe about your skill with a chainsaw. I know in my blog post there was a caveat to 'not try this at home' ...
FYI, chain saw kick back occurs when the tip of the bar is in contact with the wood. See info at this link on chain saw safety.
http://www.ag.ndsu.edu/pubs/ageng/safety/ae1025w.htm
my technique is, imho, probably most similar in controversy generating potential to sam maloof's bandsaw techniques ... NOT for everyone. as I mentioned in my DCF blog post, I bought my first chainsaw in 1973. I have worked in the woods as a professional logger, and I cut, split and hauled 4 or 5 cords of wood a year to heat my last house for 23 years ... long and short of it, chainsaws are my friend and, in heaven, all chainsaw chains are brand new ...
Kickback from a chain sometimes results in this:
A frantic phone call from my wife's best friend saying her husband's chainsaw just landed in his face; driving him to the emergency room without ever seeing his face because he wouldn't remove the towel covering the carnage; and then having to visit the husband in the hospital after they removed his front teeth from his sinuses and replacing parts of his upper lip and nose with pieces of skin taken from his thigh.
He has worn a beard since then to cover the scars.
