Repeatable Curves with a Bandsaw Jig
Mar 30, 2010

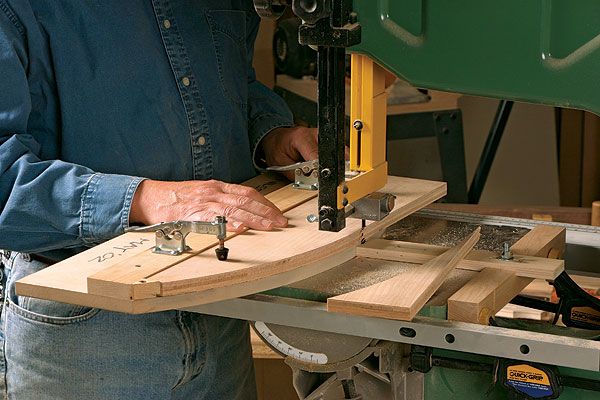

This jig helps you cut repeatable curves on the bandsaw. Click here for more details on making it.
Designed by Michael C. Fortune

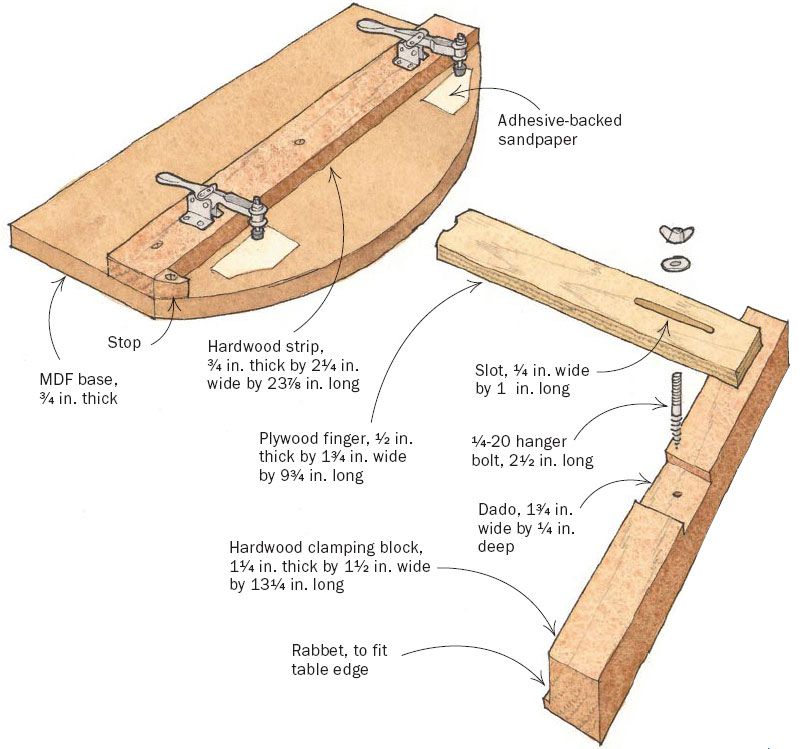

Cut repeatable curves with this finger jig and a pattern. This jig carefully guides a bandsaw blade around a pattern. The blade is positioned within the notch at the end of the finger. The distance the finger protrudes past the blade determines the amount of wood overhanging the edge of the pattern when the cut is complete.
Click here for more details on making this jig.
