Simple Sliding Jig for Crosscut Guide
Jul 24, 2010

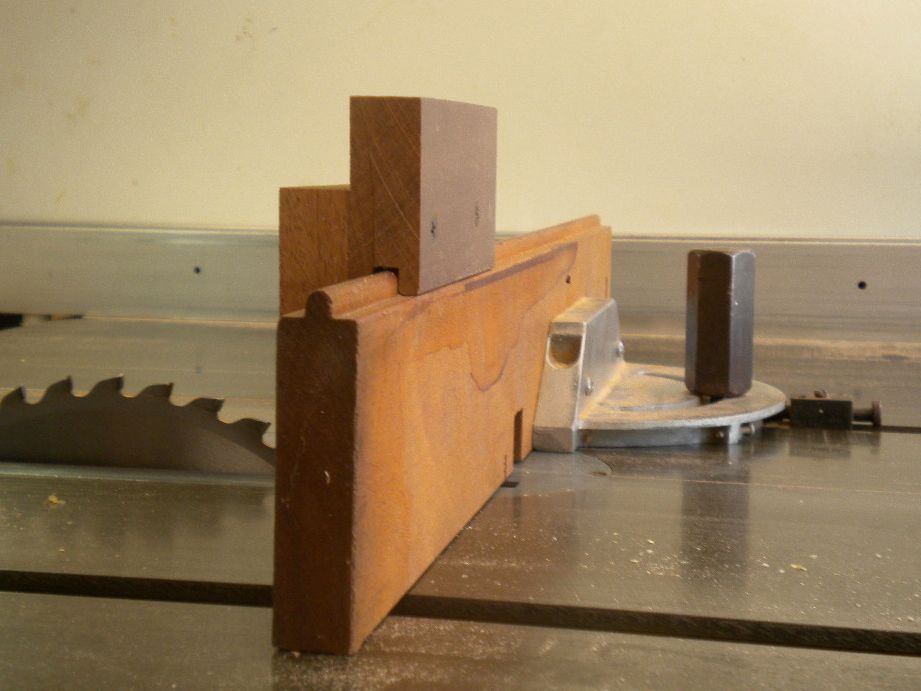

T&G fence for crosscuts- front
I have a quick tip you can use. It is simple to make and use, and allows multiple cuts with the crosscut fence.
I have some tongue-and-groove mahogany scrap. I ripped the tongue-side of a piece and fastened it to the fence as usual. Then I took a scrap of the grooved side so that it can ride across the tongued fence with ease. To this I fastened a square block down to just above the tablesaw table, and now this slides as a stop for cutting.
The sliding block can be clamped with a spring clamp for multiple cuts.
Peter Heelan
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-
T&G fence for crosscuts- front
-

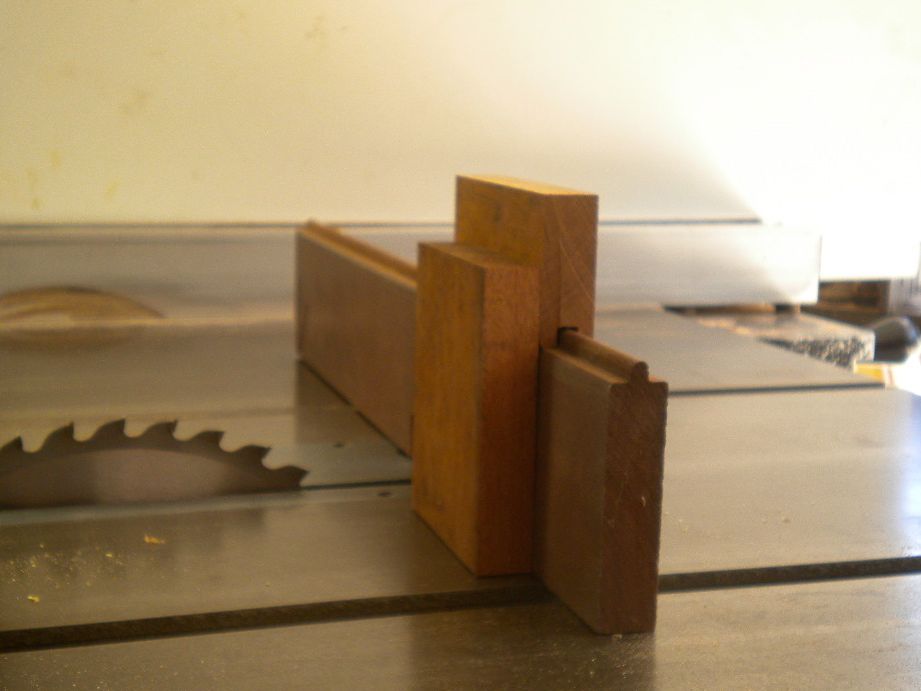

T&G fence for crosscuts- back
-

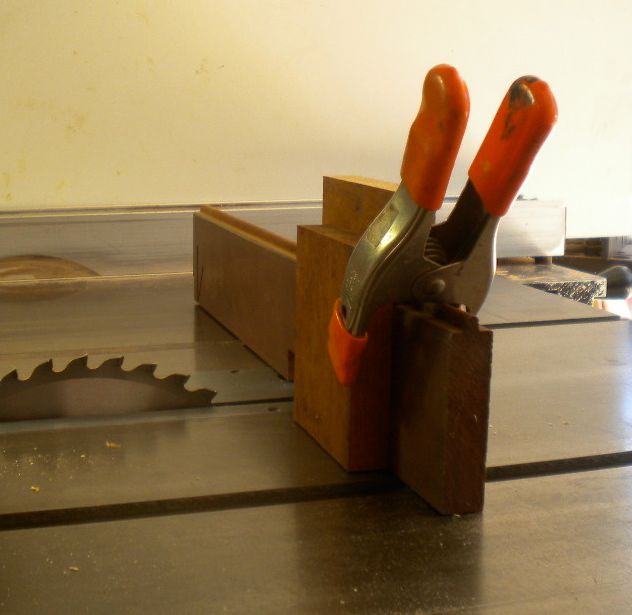

Clamp for multiple cuts
Comments
Slick! Thanks!
So simple and so elegant. Bravo!
Why not drill and thread the front wood piece and add a 1/4 thumbscrew instead of the clamp?
I have a bucket full of t&g oak flooring scraps - I never thought of taking advantage of the t&g for the purpose you have. Nice and simple - I love this site! Thanks!
I love the simplicity. I believe that most great jigs are simple to use and yours looks like it would work great!
Nice simple jig...
All I do is Use the Clamp for my "Stop"... or to clamp a piece of scrap for the stop...
Cool use of T&G scrap!
