Jig for router turning on lathe
Jul 26, 2010
Overall view of top mounted router carriage jig accessory
Production jig and fixturing for router turning on lathe using mounted carriage that is taper guided. Router not shown on carriage in present photos. Note: Blanks were produced on table saw cane tapering jig.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-

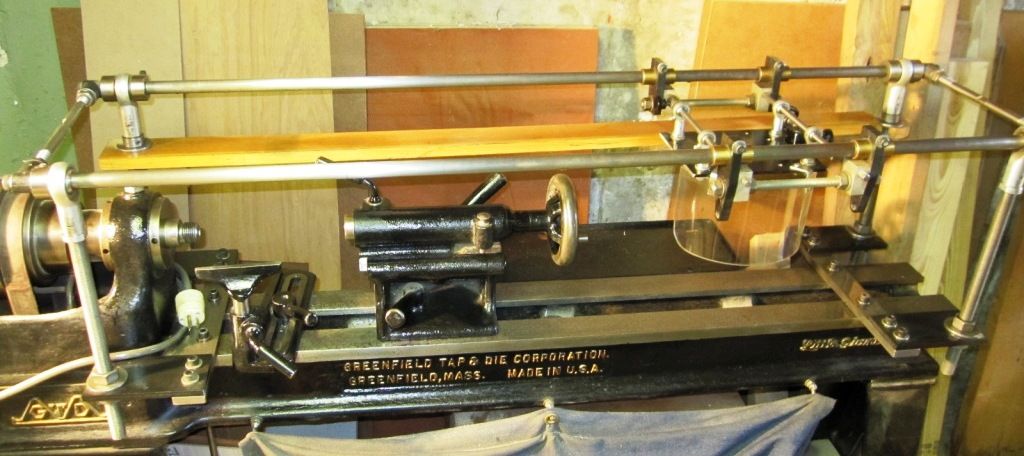

Overall view of top mounted router carriage jig accessory
-

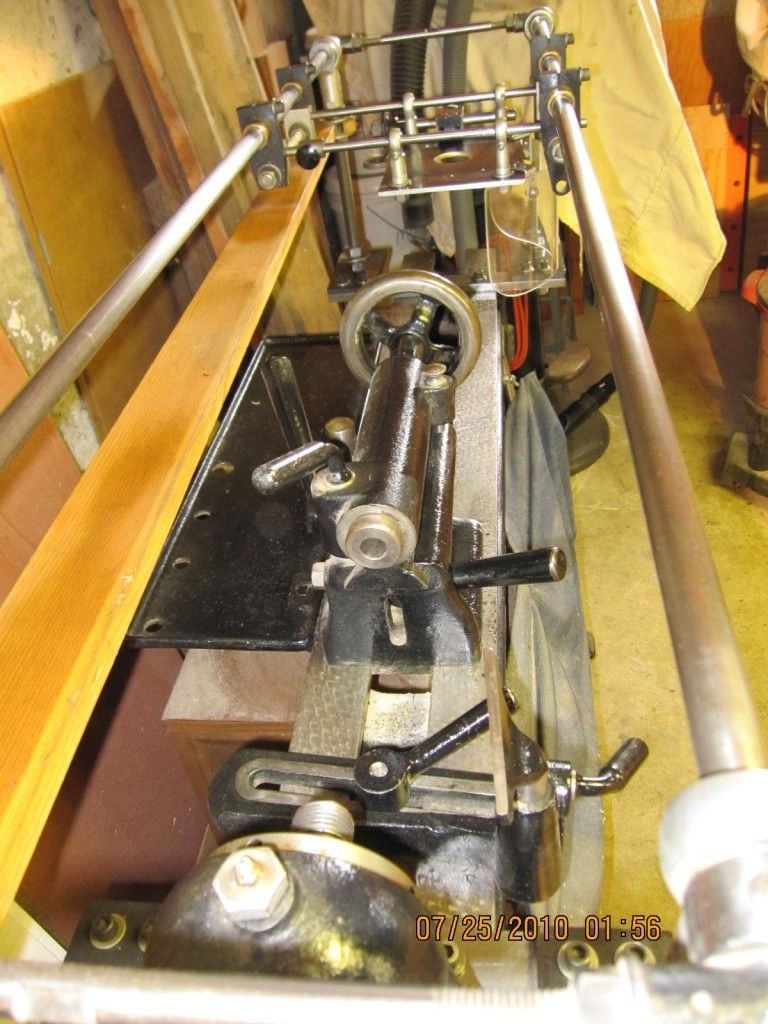

Head view of cane tapering jig
-

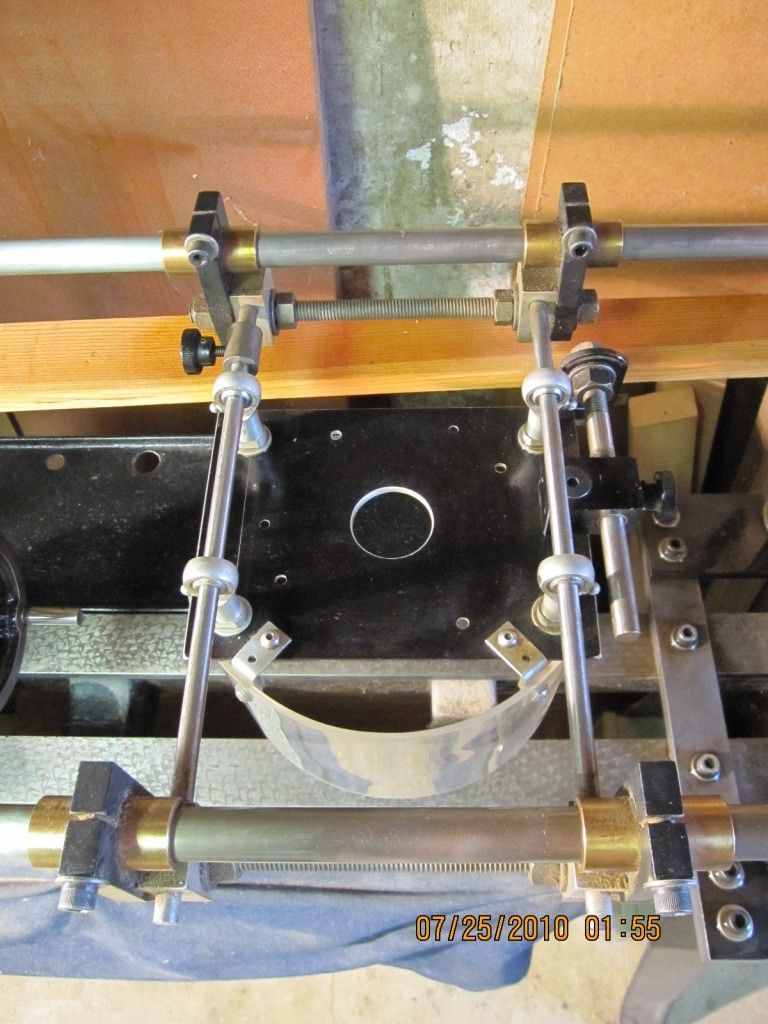

Router Carriage showing taper guide wheel on right, router not mounted
-
Simple taper guide adjustment for router carriage to match taper created on table saw tapering jig.
-

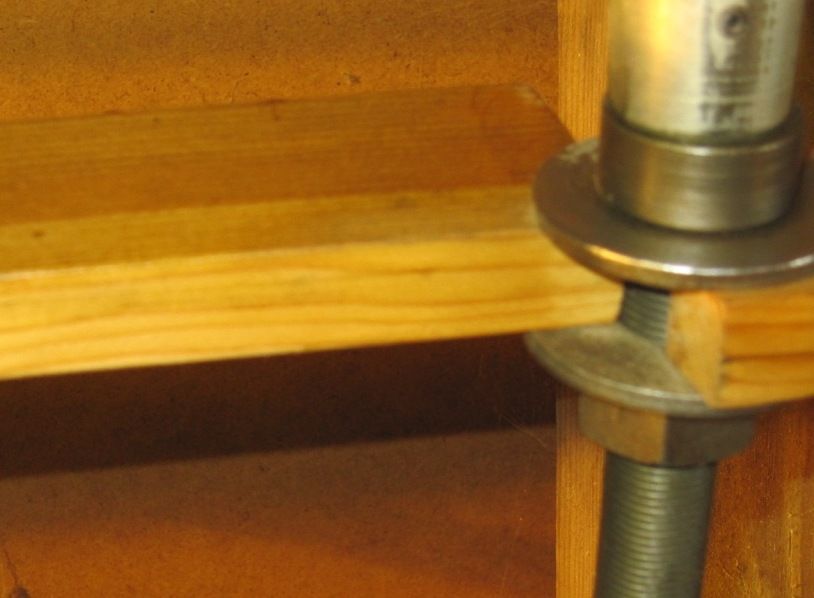

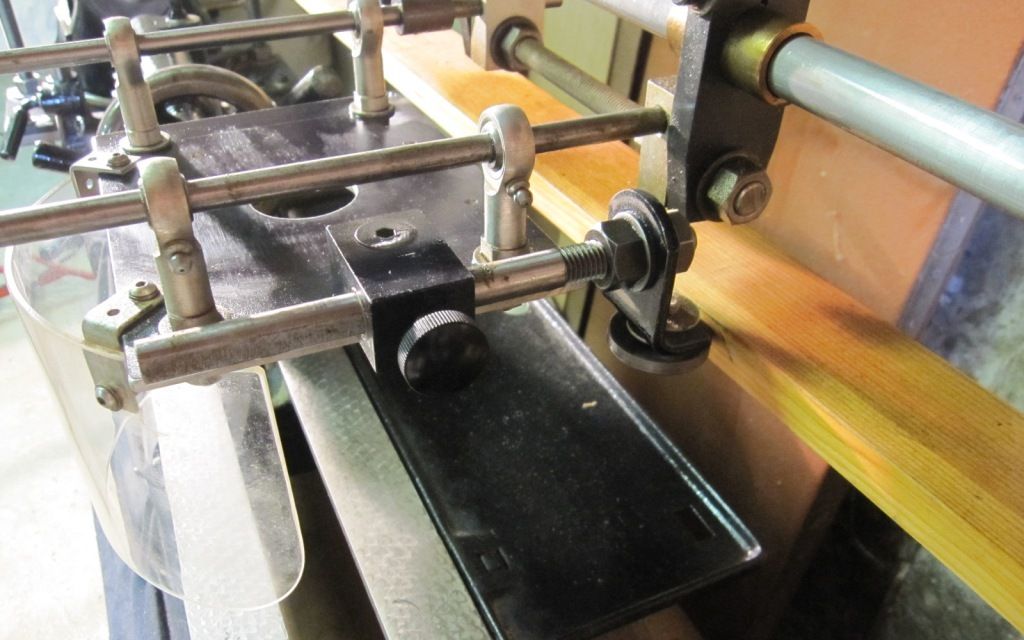

Taper guide for router carriage, showing adjustable follower wheel.
