Grip side of tool. Also showing brass wear plate on sole.
Wanted to make an easy to adjust and easy to read height gauge to set my table saw height and also my router bit height above table. With the pin point accuracy of the pointer, you can split 64 ths when that scale is set. The images show the 32 nd scale set to the pointer. I Was able to use up a small piece of “Shedua”? wood given to me by an old friend and then decided to add a brass wear plate for long term usage.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-

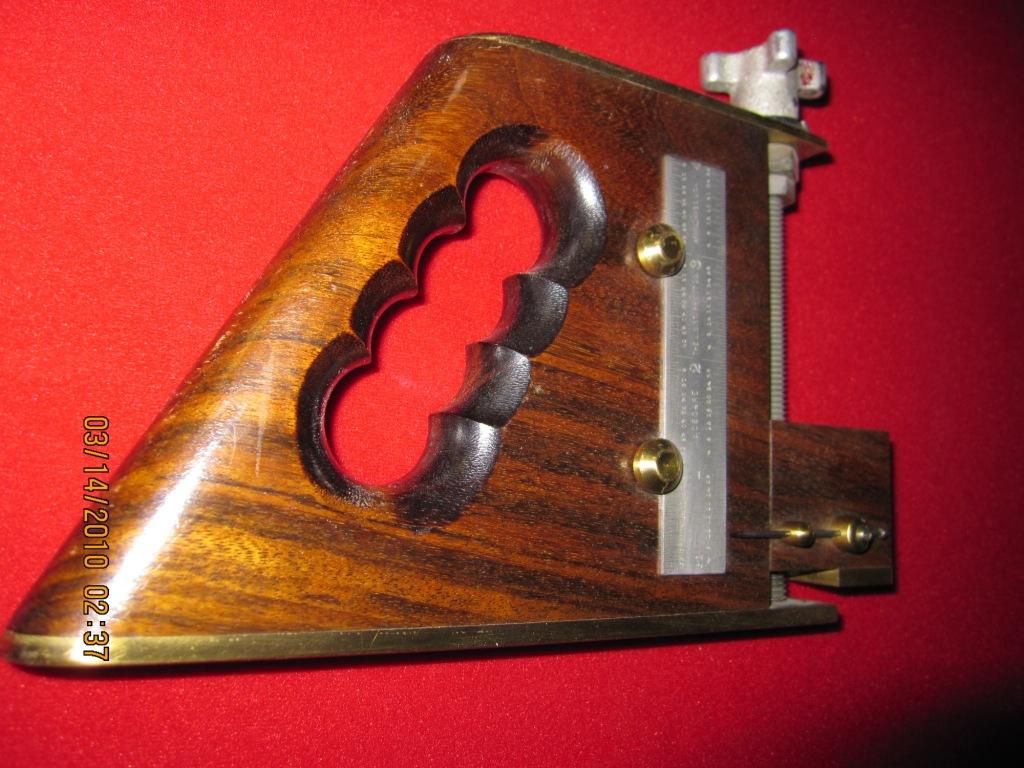

Grip side of tool. Also showing brass wear plate on sole.
-

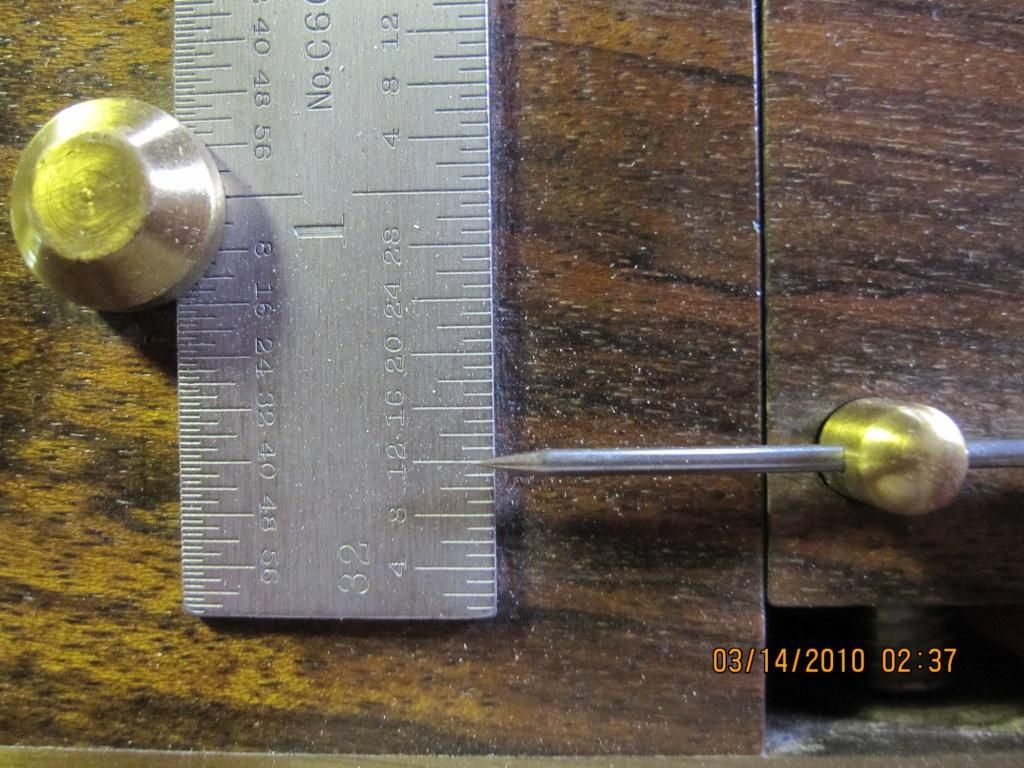

View of indicator and scale. When scale is set to 64 ths, pinpoint can split easily.
-

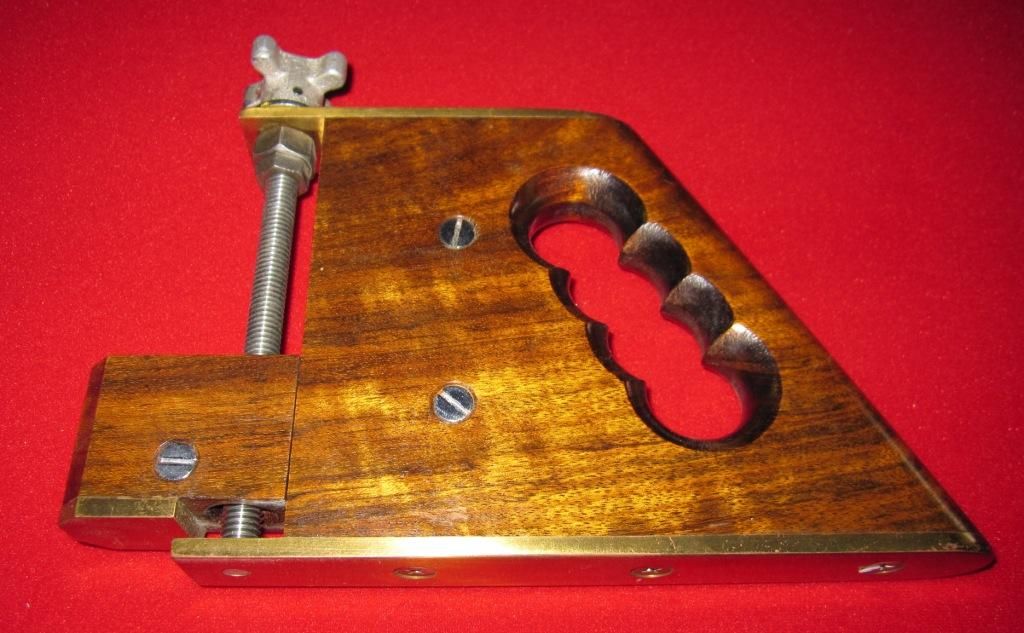

Opposite side of tool showing grain of Shedua wood.
Comments
WOW! Very smart Robert, looks like a
winner to me.Well done.
Very nice!
