ZERO CLEARENCE MITRE SAW FENCE

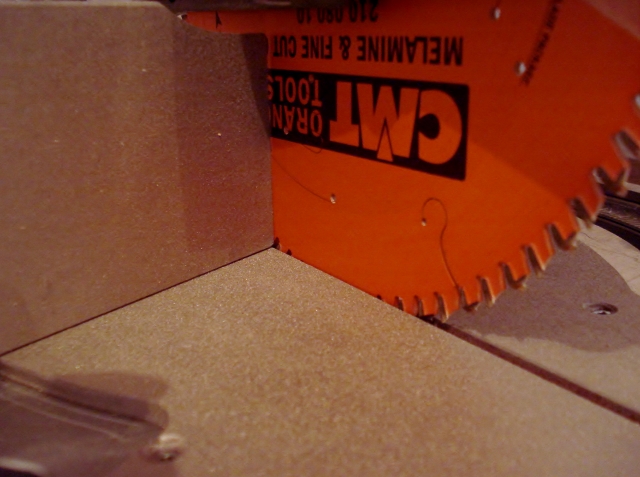

A MITRE SAW FENCE SYSTEM WHICH I INVENTED ,DESIGN AND BUILD TO PREVENT OFFCUTS FLYING OFF THE BACK OF THE SAW AND TO PROVIDE BETTER SUPPORT TO THE WORK PIECE DURING THE CUT
THE FENCE SYSTEM IS OPERATED BY A CAM CUT INTO ON EACH SIDE OF THE TURNTABLE OVERLAY
WHICH ACT ON THE FENCE HALFS VIA A BALL BEARING ATTACHED TO THE BOTTOM OF EACH 1/2 FENCE
THIS GVES EXACT MOVEMENT TO EACH 1/2 FENCE FOLLOWING THE SAW BLADE IN ALL POSITIONS
THE 1/2 FENCES ARE MOUNTED ON FULL EXTENSION DRAWER SLIDES AND CONNECT TO THE ORIGINAL FENCE BY HEAVEY PINS.
I REMOVE THE NEW FENCE WHEN DOING BEVEL CUTS WHICH ONLY TAKES A FEW SECONDS
THE FENCE FACES AND TURNTABLE OVERLAY ARE SPAYED WITH A NON SLIP COATING TO HELP PREVENT MOVEMENT OF THE WORK PIECE DURING CUTTING.
SAFTY IS MY MAIN CONCERN HAVING LOST A EYE IN A SAW ACCIDENT
K.E.MATTHIES
