Router Table/Storage Cabinet
Jun 08, 2012

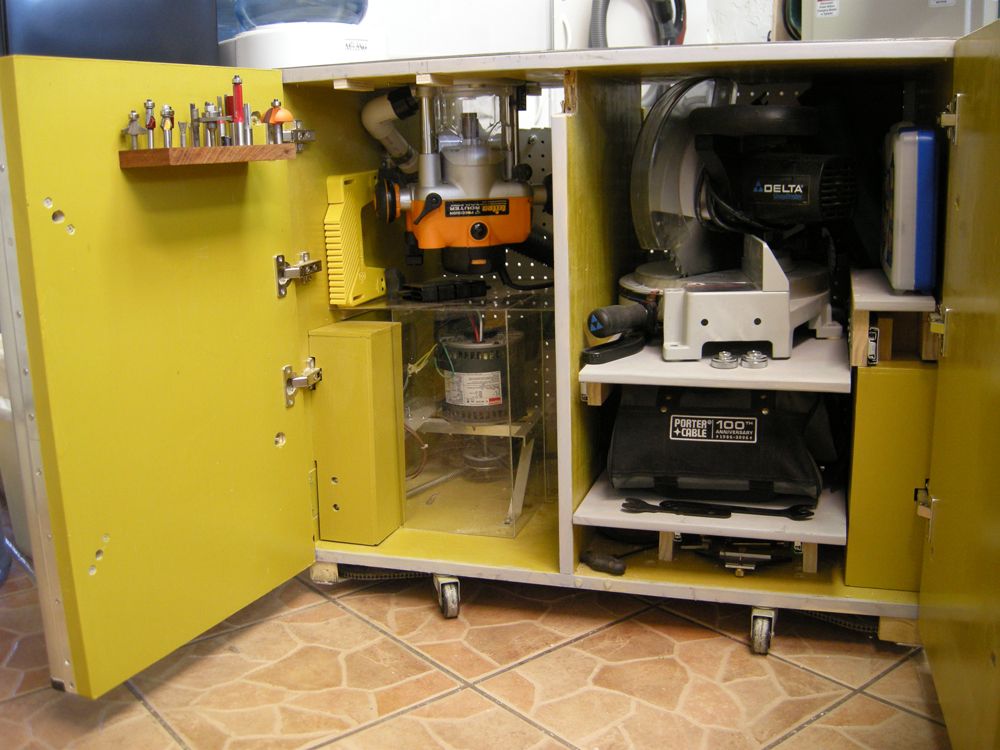

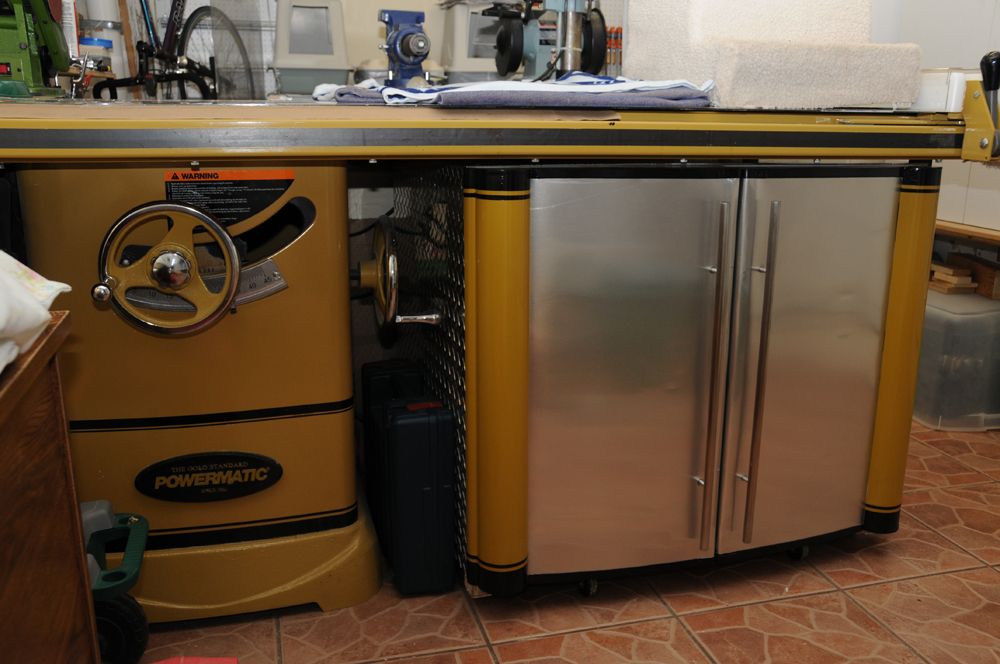

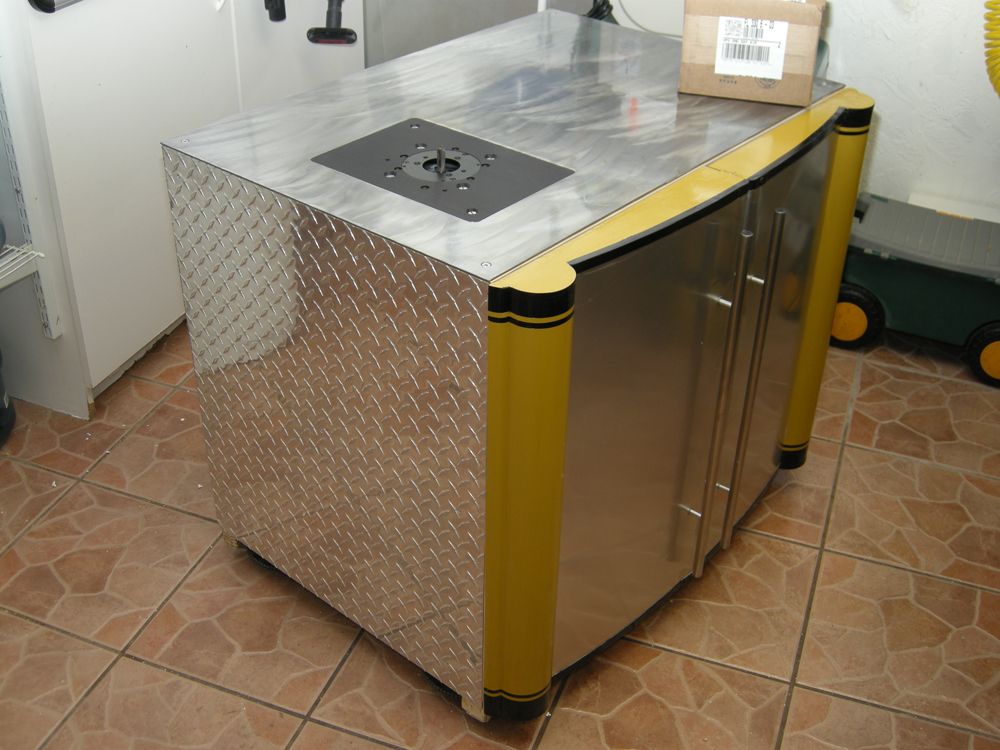

Rolls out from the table saw extension wing and can raise up automatically to the table saws height providing a level working surface for extra long pieces of wood. Sliding shelves contain a miter saw and spare router.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
Comments
I would like to know more about how your router table raises up to the same height of your table saw. Can you describe the mechanism for us?
Shelley, There is a motor inside the cabinet connected to 3 step-down pulleys. The 3rd pulley shaft passes through the bottom of the cabinet where it drives a chain connected to sprockets at each corner of the cabinet. The sprockets have threaded centers which drive 1/2" threaded rods. The rods turn, lifting the table. The circuit I designed has 2, 4 pole double throw relays and the upper and lower stops are controlled by limit switches as the table passes notches cut into a post. I installed momentary contact green and red push button switches in the back of the cabinet.
