a george the third style dining table
Mar 24, 2013

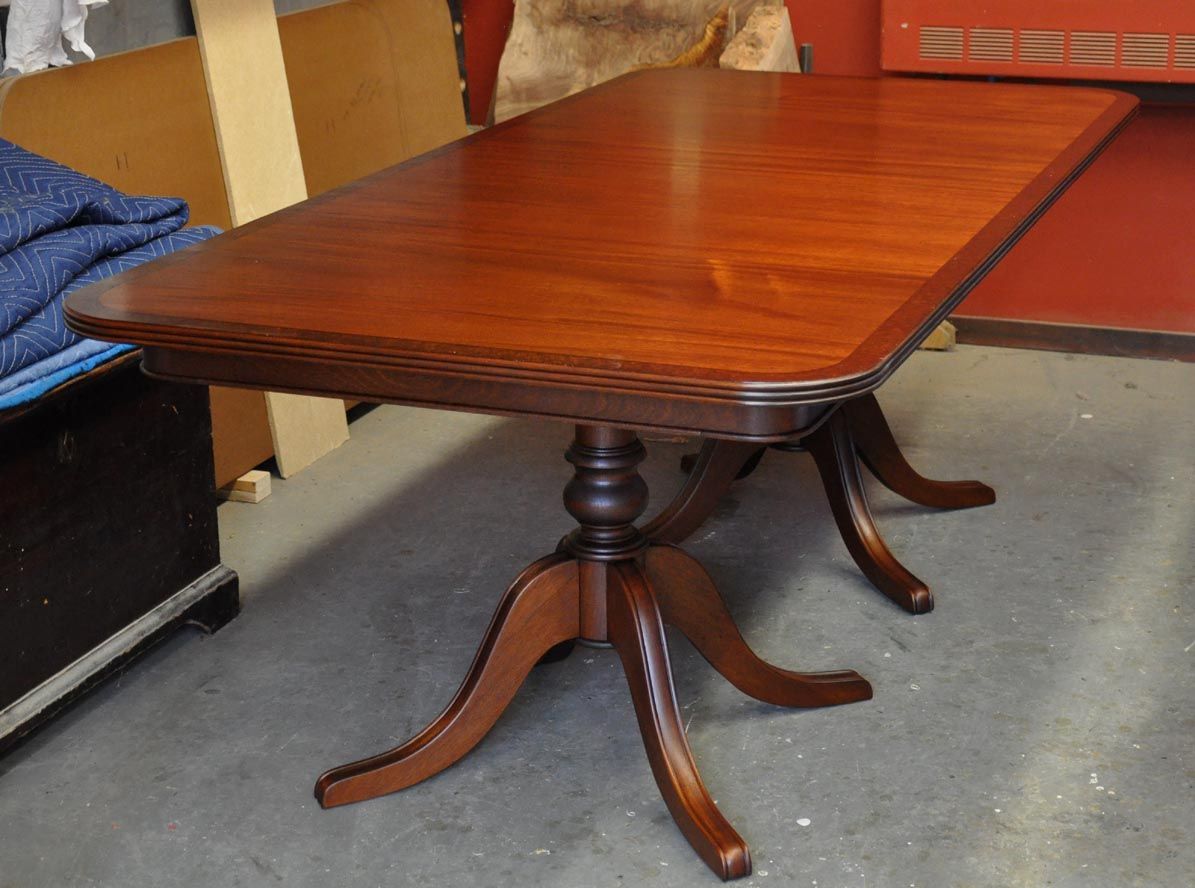

the finished table
well, here’s a table with a lot of woodworking involved. we made the first, more complex, version of it in the early 90s for a client who photographed, measured, and documented a table they studied while on a trip to england. that table had a more complex edge inlay (three lines of ebony,two lines of birdseye maple, and an outer edge of zebrawood) and brass casters on the pedestals … you can see two photos of that table on my website at this link. there are several steps in forming the ‘legs’ and joining them to the turned columns, and i remember struggling with the glue up of the original pedestals. we solved it with a clever jig this time through. not to brag, (it was just dumb luck), that we saved, AND were able to find the original box jig from 1991 for cutting the dovetails in the turned column. i also had a full size drawing of the turnings and the ‘legs’ which saved us some time too. you can see many more detailed and larger photos of the setups and steps involved in m aking this table in this blog post. there are other projects happening in the shop now too ..i hope you had a relaxing sunday … it is trying, without a lot of success, to be spring in vermont today.
— dan,vermont,http://dorsetcustomfurniture.blogspot.com/
-
the finished table
-

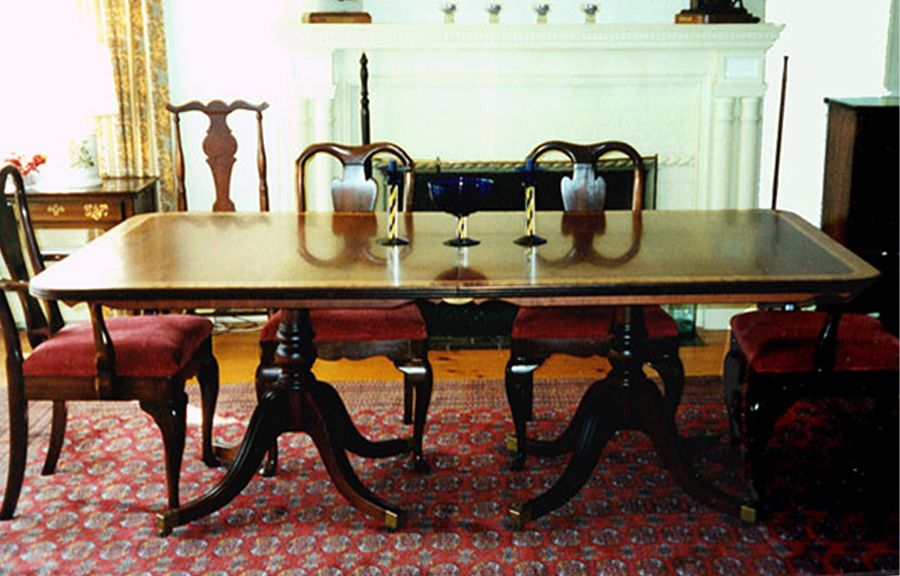

the original, made in our old shop. no cnc, no fancy tools ... more info at this link
-

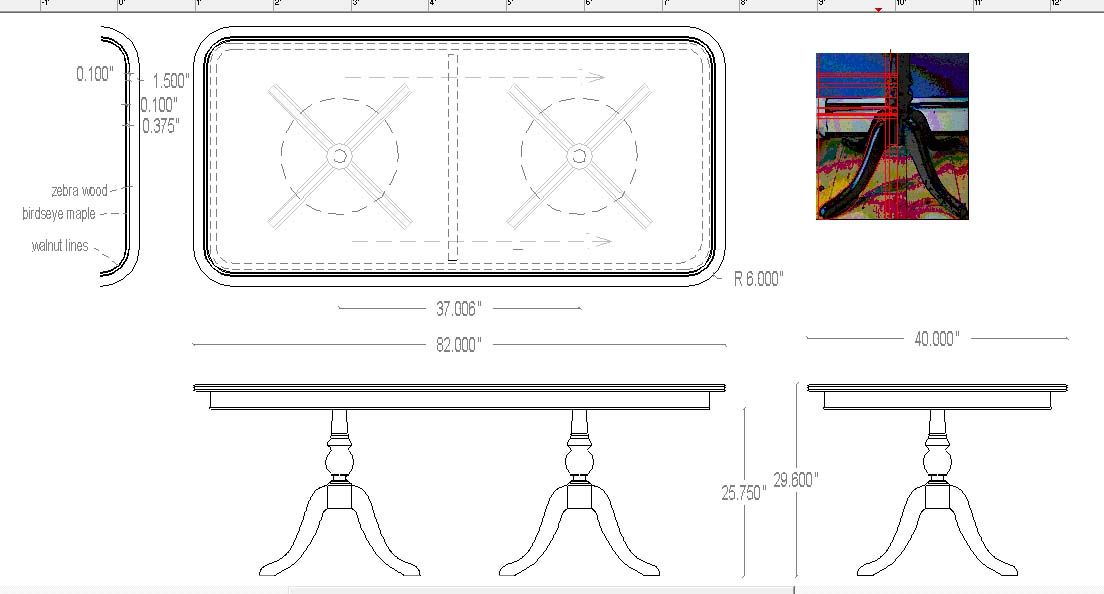

smaller, 42 x 84, simpler, (no leaves, no casters) version cad drawing
-

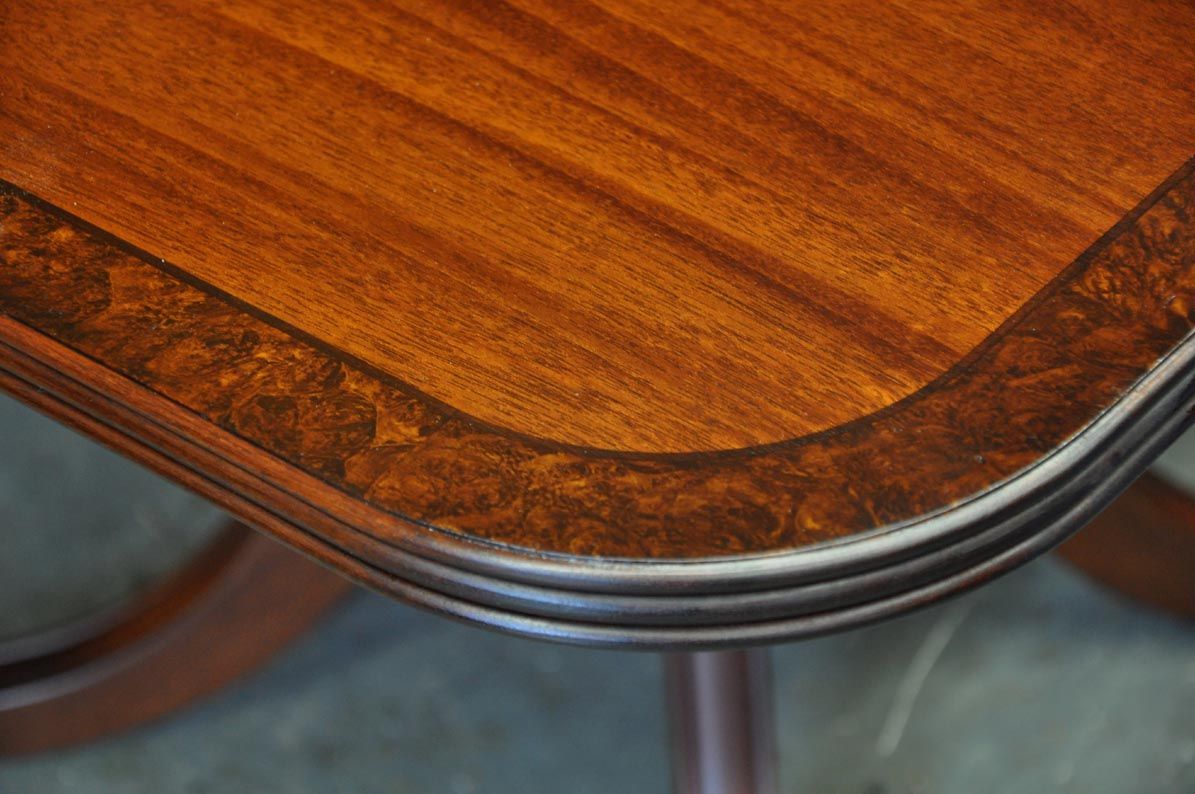

edge detail
-

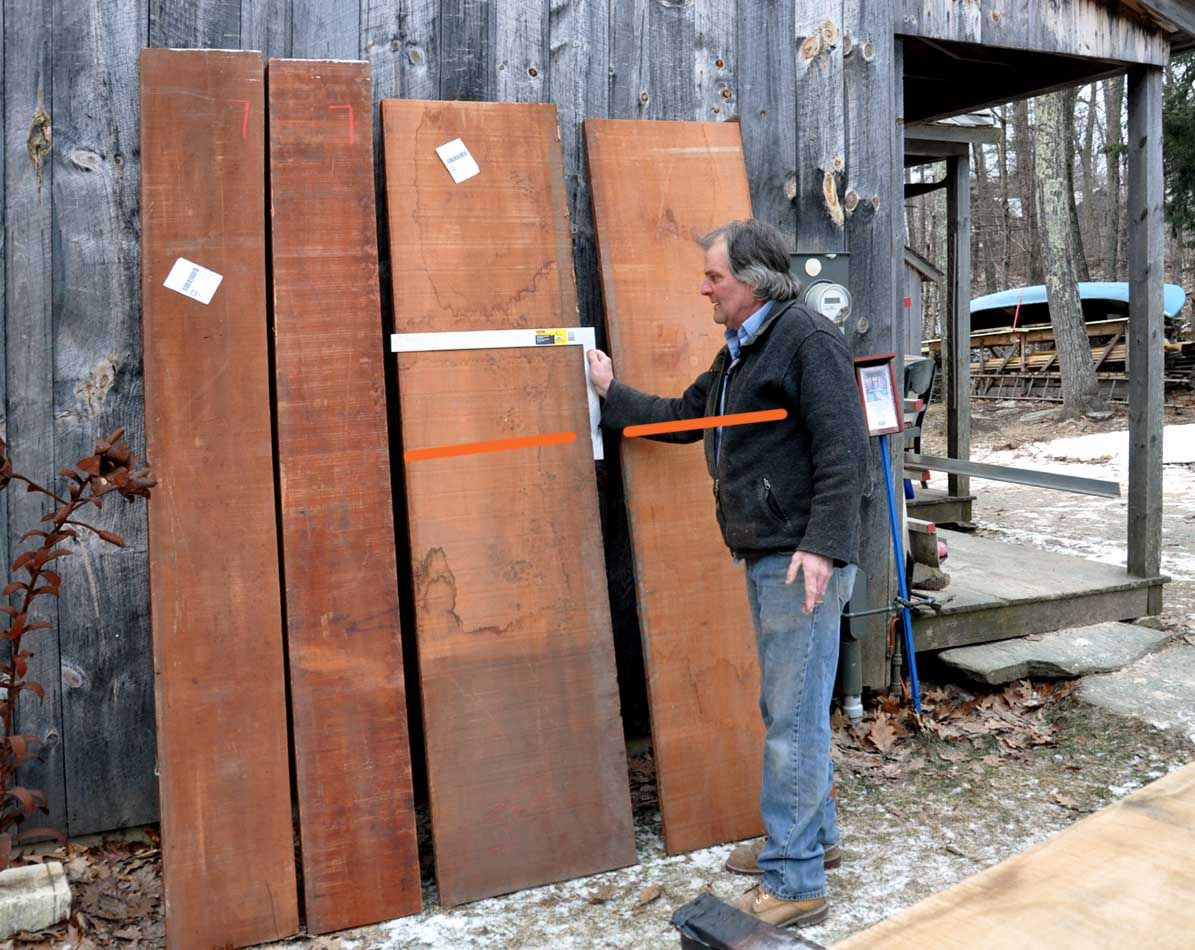

mahogany from irion lumber. the side boards are two halves of one board, cut for shipping
-

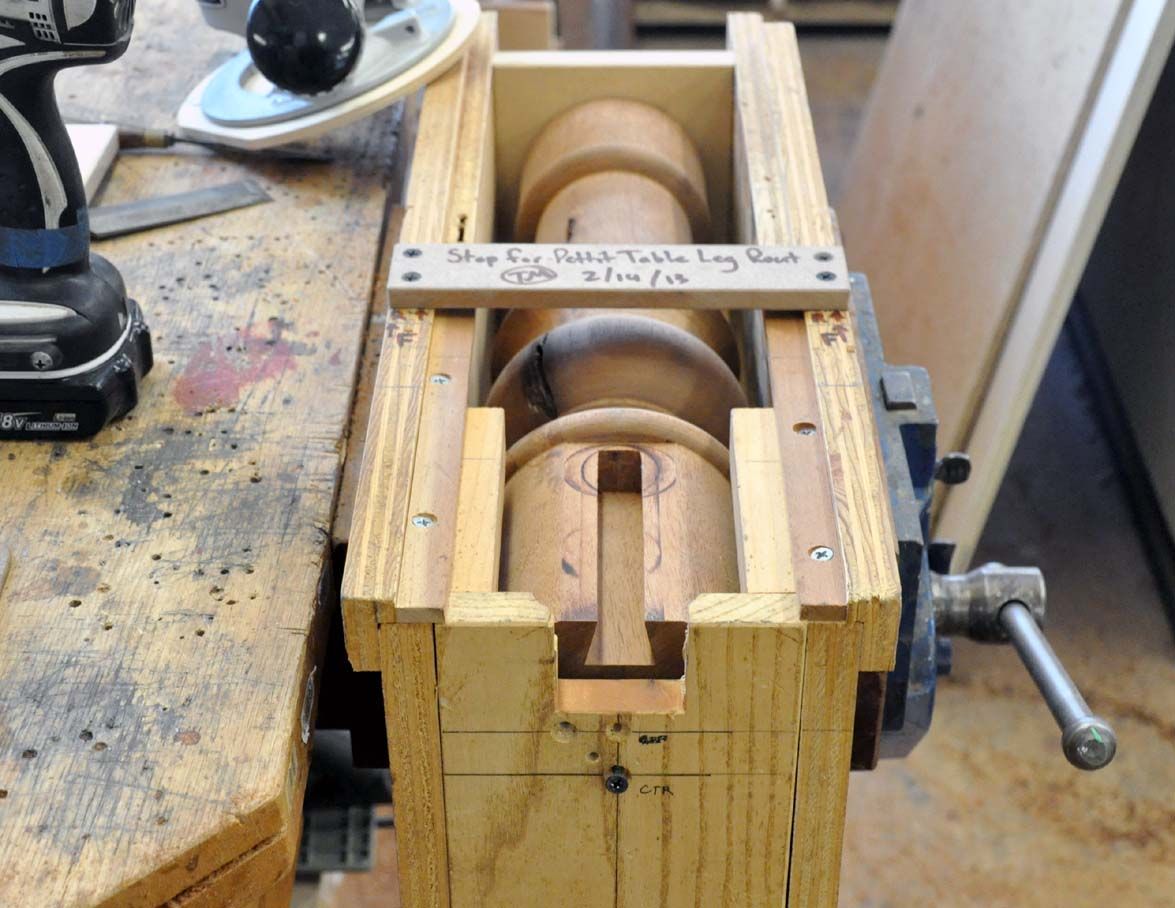

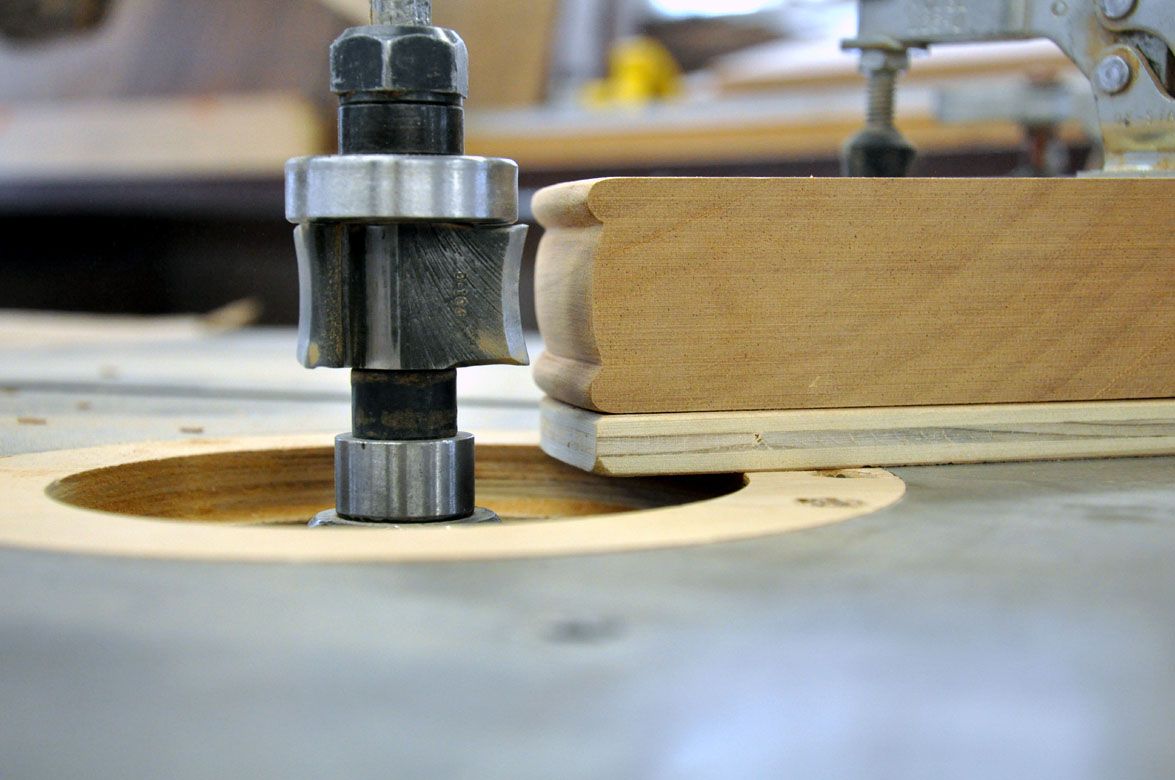

three different bits. same jig. other set up photos at this link
-

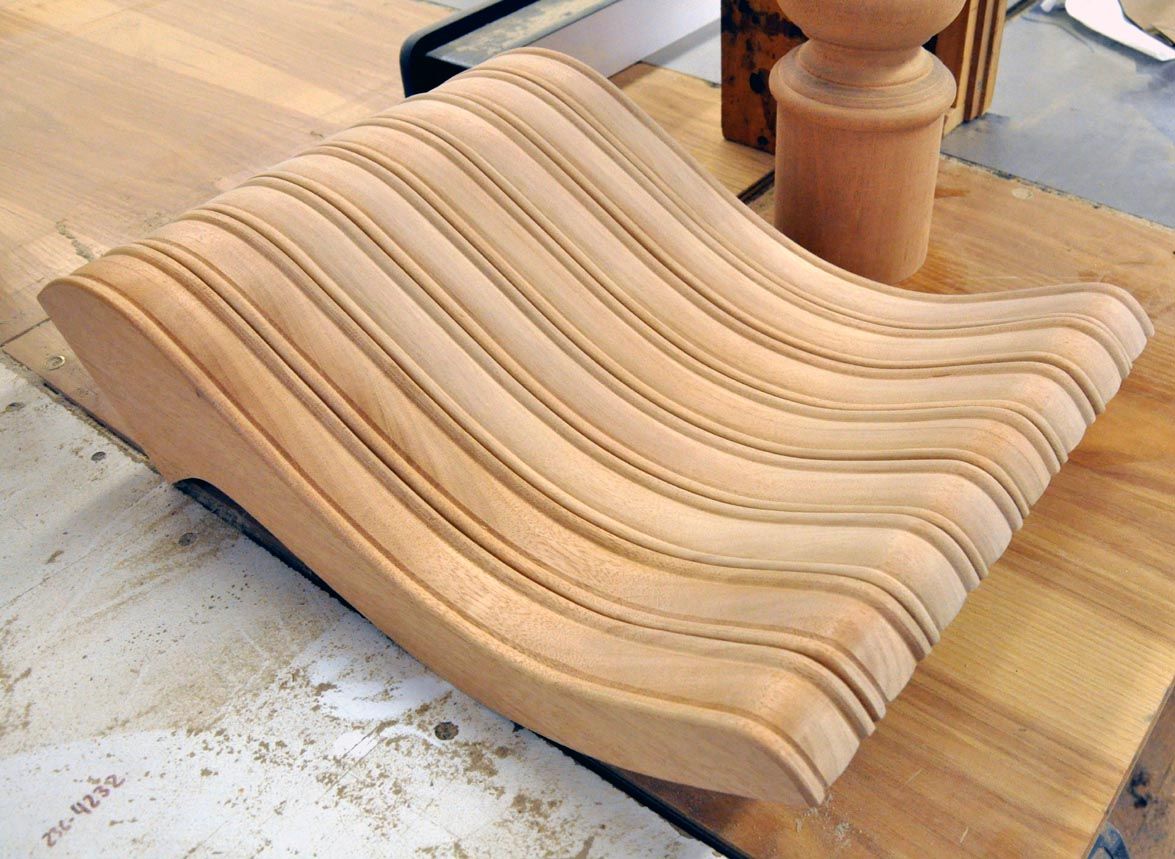

after the 'legs' were cut and sanded to shape, there were three additional setups to execute the edge profile
-
tah dah
-

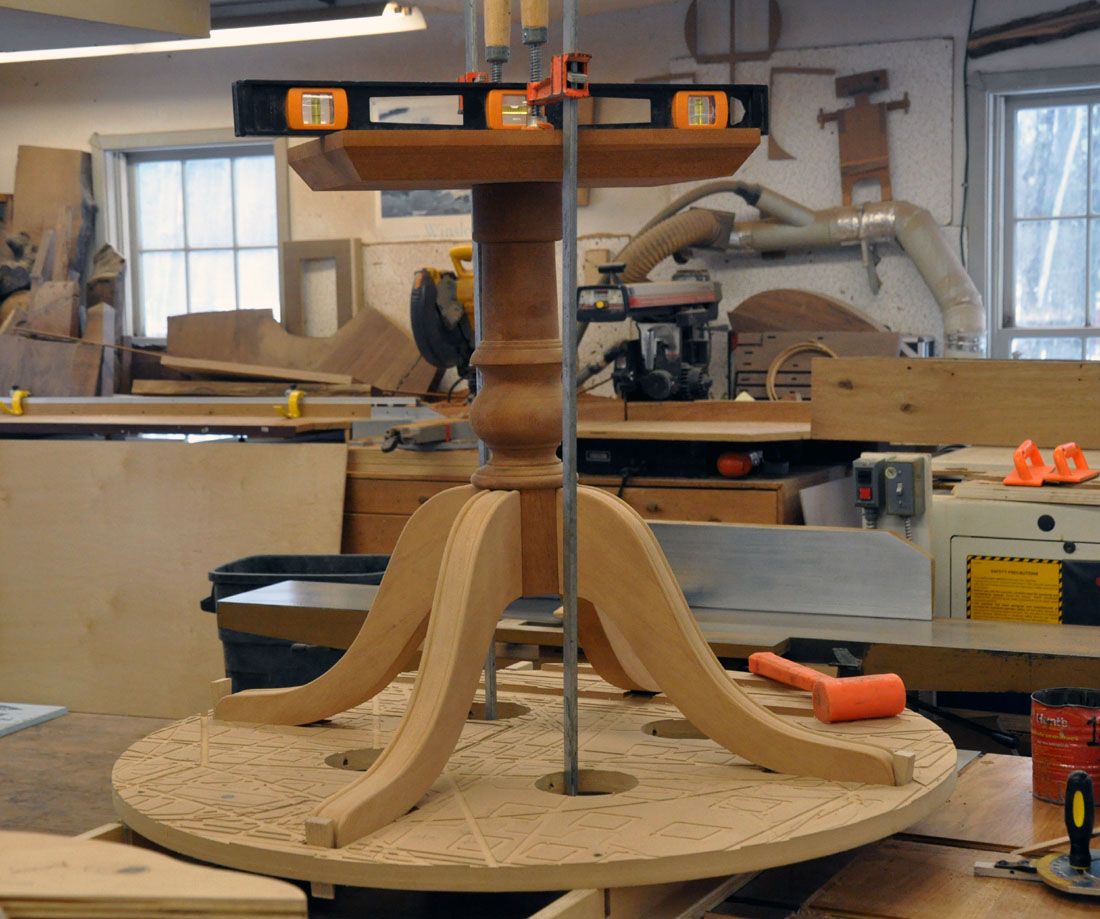

solved the tricky glue up problem with a jig with wedges
-

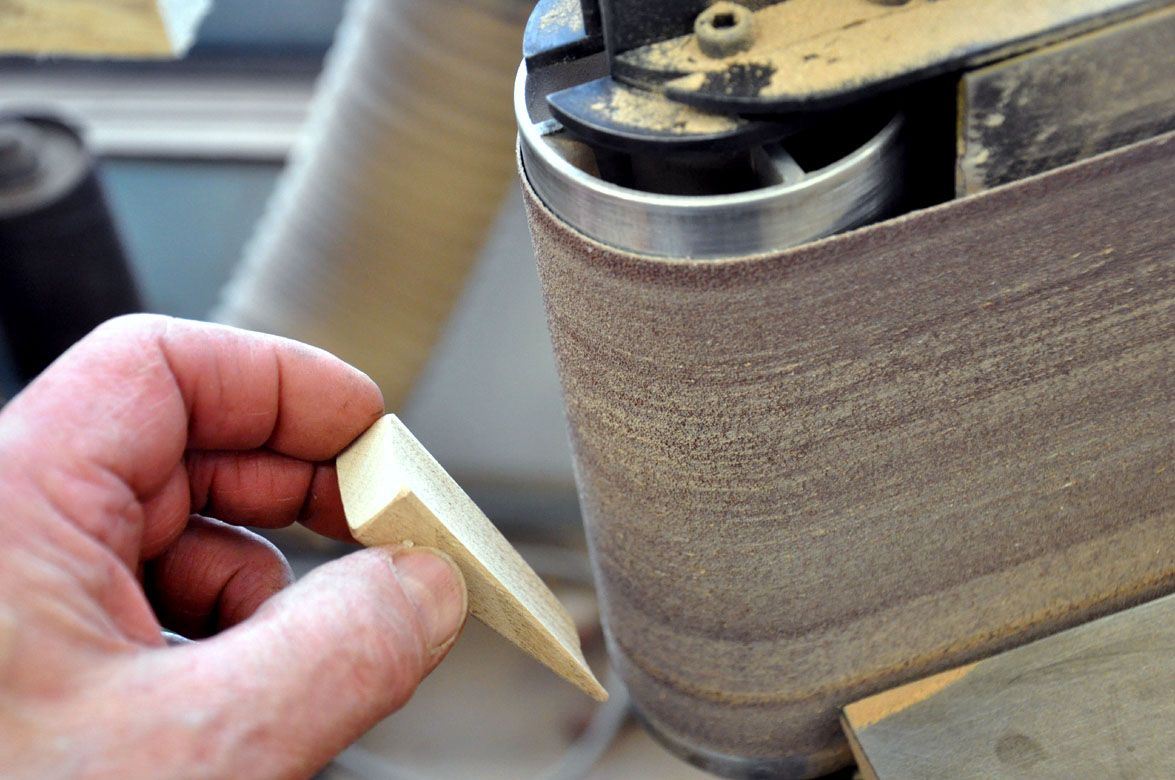

custom made butternut (softer than the mahogany) wedges
-

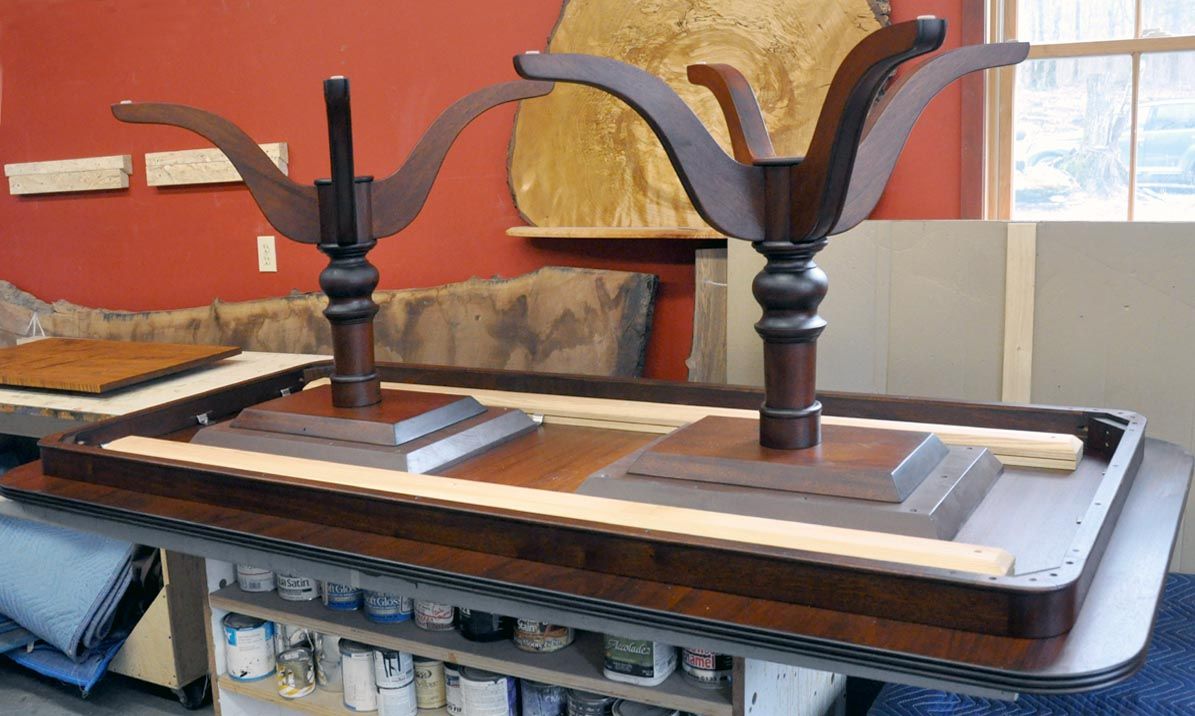

underside with stiffeners and apron
-

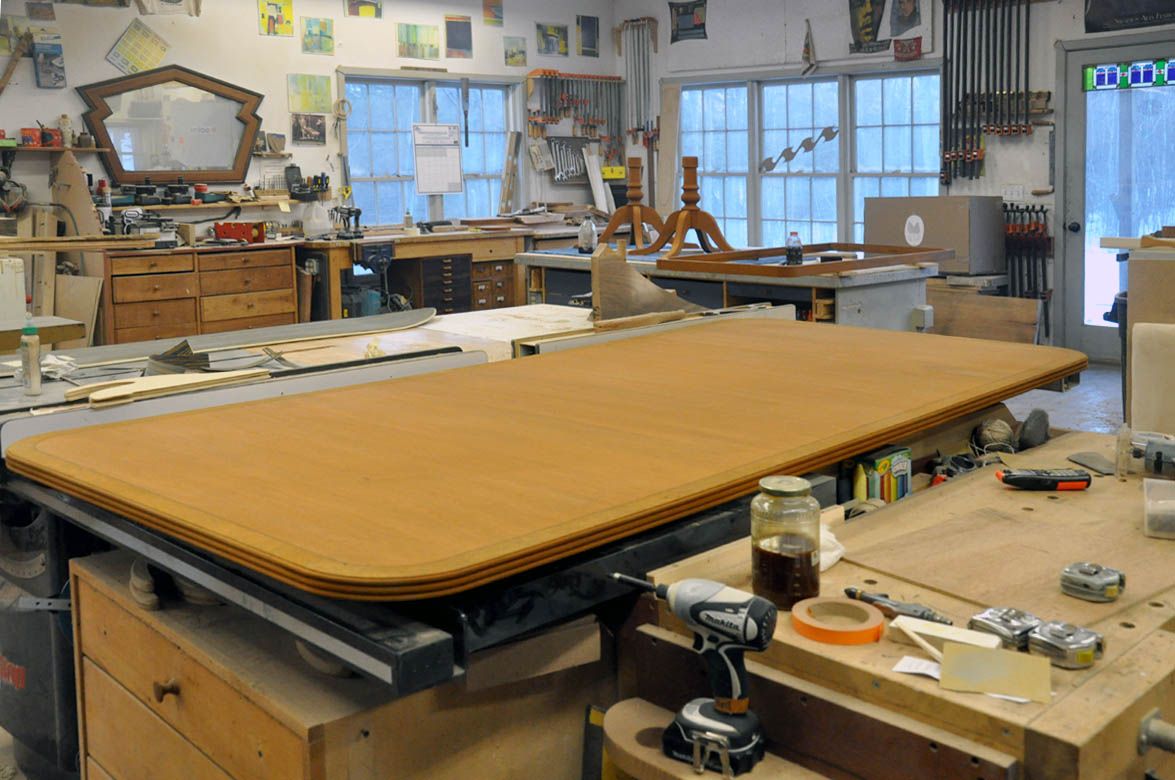

first coat of lockwood dyes
