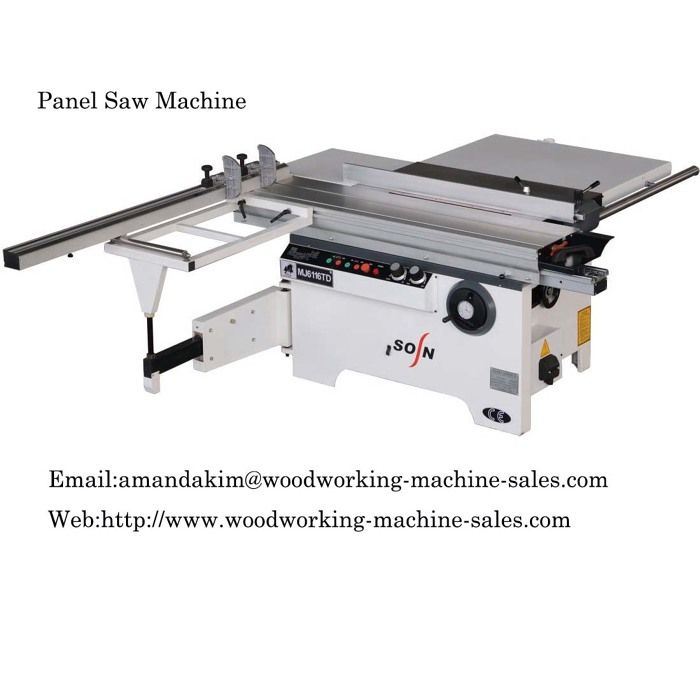

woodworking panel saw machine with CE max cutting length 1600mm
Aug 24, 2013
panel saw MJ6116TD
Dimension of sliding table 1600x375mm
Gross cut capacity 1600mm
Width of cut between saw blade and rip fence 1250mm Saw blade diameter 300(250-400)mm
Height of cut (300mm) 90mm
Speed of main saw spindle 4500/6000rpm
Main spindle diameter 30mm
Tilting saw blade 0-45 and 90 degree
Main motor 5.5kw
Scoring saw blade diameter 120mm
Speed of scoring saw blade 7000-8000rpm/min
Scoring spindle diameter 20mm
Scoring motor 1.1kw
Net weight 650kg
Gross weight (with wooden package) 700kg
Overall dimension 1750*3150*900mm
Packing size of the machine body(L*W*H) 2200*1150*1100mm
Packing size of the sliding table(L*W*H) 1750*480*320mm
Location :Qingdao,China
Price:FOBQingdao 2600USD/SET
