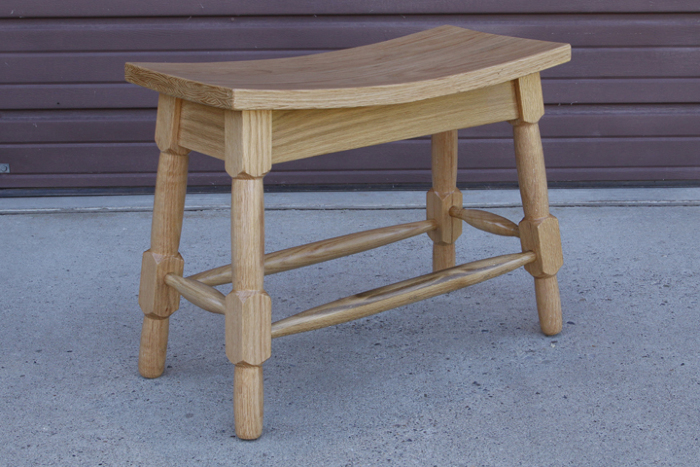

Curved Seat Bench
To bend the wood for the seat, I soaked 1/4″ Oak strips….put them in a bending jig….clamped it. Glued the 5 layers separately into one unit. Grain filler and 4 coats of finish.
To bend the wood for the seat, I soaked 1/4″ Oak strips….put them in a bending jig….clamped it. Glued the 5 layers separately into one unit. Grain filler and 4 coats of finish.
Get It All!
UNLIMITED Membership is like taking a master class in woodworking for less than $10 a month.
Start Your Free TrialWith its graceful curves, cabriole legs, and ornamental back splat, a Queen Anne side chair is a bucket list build for many woodworkers. Dan Faia had a very specific Queen…
Become an UNLIMITED member and get it all: searchable online archive of every issue, how-to videos, Complete Illustrated Guide to Woodworking digital series, print magazine, e-newsletter, and more.
Get complete site access to video workshops, digital plans library, online archive, and more, plus the print magazine.
Already a member? Log in
Comments
Question: You say 1/4" Oak Strips - How many did it take (strips) and what is your bending technique?
Good question, DionsaurPets....I buzz sawed 2x Oak into 1 3/4" and 1 1/4" wide strips.....1/4" thick. Seat is about 18" long....and 12 wide. I'm guessing there's about 45 - 50 strips. I cleaned up the edges after the soaking and drying process..... glued alternating width strips together (edge to edge). I now have 5 bent sheets. Applied lots of glue to the sheets and put the assembled piece in C-Clamps. Cleaned up all 4 edges after the glue dried and finished it off with a palm sander. The bending technique was straight forward.....I laminated 6 - 2x6's together....drew a curved line on one edge (this curve produces the curve for the strips)...ran it though the Band Saw. I layered the wet strips into the curved jig....set the other half of the jig on the stack and bar clamped it solid. I let it sit a couple years to dry thoroughly in my green house. Steam Bending would speed the process along significantly. But I've got lots of time.
