Geo-Ribbon Jewelry Box
Jul 25, 2014

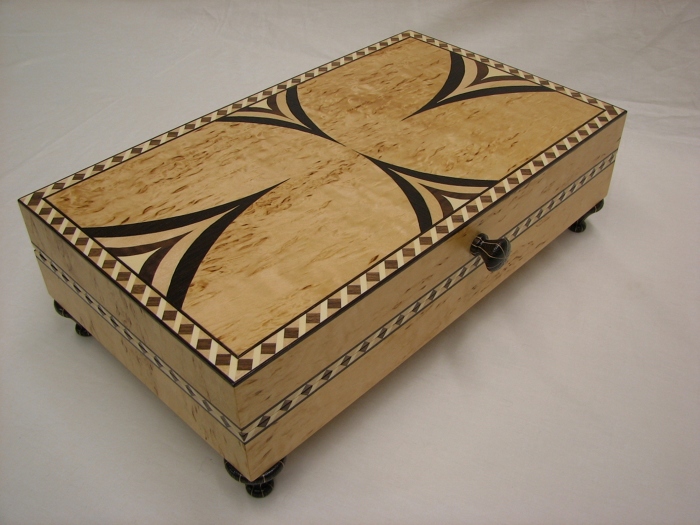

Full Angle View
To make this box I started off by making the Ribbon Banding which is made out of Holly, Wenge, Walnut, & Maple Hardwoods.
The background veneer is Karelain birch burl and the Marquetry is the same Holly, Wenge, Walnut, & Maple but in veneers. This really helped everything blend together.
The box size is 4 1/4″ tall x 14 1/2″ wide x 8 1/2″ deep Here is a list of a few techniques that I used to make this box.
The Ribbon Banding,is cut out of solid woods then glued together then cut into thin banding. This is a great way to match up the veneers, to the Ribbon Banding on the complete box, which really helps give a rich uniformed color scheme.
Box Veneering both sides of one 1/2″ thick small piece of plywood, then using a V Groove router bit to give instance uniformed miters on all edges of the box. Then just make a bottom and glue the box together.
The Window Method of Cutting Marquetry or Parquetry. By simply using a Knife or Scalpel and cutting out the insert into the background veneer. This method is quiet easy as far as set up time goes but takes a little longer to cut then on a scroll saw.
The feet and pull are a segmented turning, by making a glue jig then gluing eight pieces of hardwood and eight pieces of veneer together. Then turned on the lathe.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-
Full Angle View
-
Box Open
-
Banding and Pull Close Up
-
Close Up of the Segmented Feet
-
Full Front view
-
Full Side View
